Thermal transfer printer ZD611-HC

direct thermallabelbarcode label

Overview

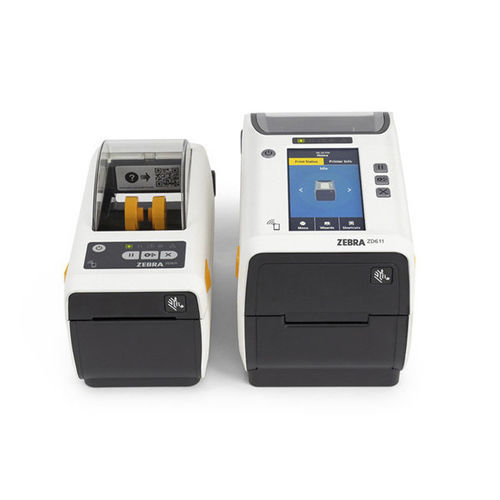

The Zebra ZD611-HC 2-inch desktop printer is designed for healthcare environments, combining disinfectant-ready materials, UV-resistant housing and an IEC 60601-1 medical-grade power supply with Link-OS™ management and Print DNA tools. Available in direct thermal, thermal transfer and linerless (direct thermal) variants, the ZD611-HC supports compact, reliable label and wristband printing for clinical workflows.

Technology for Today, Innovation for Tomorrow
Advanced architecture enables concurrent operations, faster processing and future-proof updates via Zebra Print DNA for firmware, security and remote management.

Premium Printing Performance

• Print resolutions: 203 dpi standard; optional 300 dpi for high-detail labels.
• Max print widths: ~56 mm (203 dpi), ~54 mm (300 dpi).
• Print speeds up to 203 mm/s (203 dpi); thermal transfer models include a media dancer for consistent quality.

Purpose-built Healthcare Design
Disinfectant-ready plastics, sealed-button interface and UV-resistant housing simplify clinical cleaning protocols. Healthcare models ship with an IEC 60601-1 certified power supply suitable for medical locations.

Operate with Ease
OpenACCESS™ media loading, color-coded touch points, optional 4.3 in. full-color touch LCD (thermal transfer model) and Print DNA utilities (setup wizards, emulations) reduce setup and training time.

Hassle-free Integration
Backward compatibility with ZPL and EPL, extensive firmware emulation options and standard Ethernet, USB 2.0 and USB Host interfaces. Optional RS-232 and dual-radio wireless (802.11ac Wi‑Fi + Bluetooth) plus BLE pairing and NFC (Print Touch) for quick mobile setup.

Mobility and Options
Optional high-capacity battery enables full-shift portable printing. Field-installable dispenser/peeler, cutter, linerless kit (direct thermal only), serial and wireless modules extend deployment flexibility.

Supplies, Service and Support
Zebra Certified Supplies are recommended to ensure consistent print performance. Global support and optional Zebra OneCare maintenance plans offer extended coverage and replacement options.

Healthcare Features

• Healthcare-preferred white color
• IEC 60601-1 certified medical power supply (healthcare models)
• Disinfectant-ready plastics with sealed-button interface
• UV-resistant housing for UV cleaning protocols

Standard Features

• Print methods: Thermal Transfer or Direct Thermal
• Languages: ZPL II, EPL 2, XML, ZBI, PDF Direct
• 4.3 in. full-color touch LCD (480 x 272) with 3-button UI (thermal transfer model)
• 5-icon, 3-button UI (direct thermal model)
• Ethernet, USB 2.0, USB Host; optional serial, dual-radio wireless
• BLE mobile setup support and NFC Print Touch
• Real Time Clock (RTC)
• OpenACCESS™ for easy media loading; dual-wall frame
• ENERGY STAR® certified

Physical Characteristics

• Dimensions: ZD611d-HC 220 x 115 x 151 mm; ZD611t-HC 242.9 x 138.7 x 169.2 mm
• Weight: ZD611d-HC 1.07 kg; ZD611t-HC 1.629 kg

Printer Specifications

• OS: Link-OS™
• Memory: 512 MB Flash; 256 MB SDRAM
• Max print speed/width as above
• Media sensors: full-width movable reflective/black mark and multi-position transmissive/gap

Media and Ribbon Characteristics

• Label length: 6.35 mm – 991 mm
• Media width: 15 mm – 60 mm
• Max media roll OD: 127 mm; supported core IDs: 0.5 in / 1.0 in (adapters available)
• Ribbon: standard 74 m (243 ft), width 33–58 mm; 1:1 ribbon-to-media ratio (thermal transfer)

Operating Characteristics

• Operating temp: 4.4 °C to 41 °C; storage: -40 °C to 60 °C
• Operating humidity: 10% to 90% non‑condensing
• Electrical: Auto-detect 100–240 VAC, 50–60 Hz; Energy Efficiency Level VI; optional 2750 mAh battery

Options and Accessories

• Linerless with cutter (direct thermal only)
• Dispenser/peeler, cutter (factory or field-installable)
• Field-installable RS-232, internal Ethernet, wireless dual-radio
• High-capacity battery, ZKDU keyboard display unit, mounting adapter bracket

Fonts, Graphics and Symbologies

• Extensive 1D and 2D barcode support (Code 39, Code 128, UPC/EAN, PDF417, DataMatrix, QR, Aztec, etc.)
• Multiple resident scalable and bitmap fonts; Unicode and OpenType support

Included in the Box

• Printer; empty ribbon take-up core (thermal transfer model); AC power supply and cord(s); USB cable; Quick Start Guide; Regulatory Guide

Recommended Services

• Zebra OneCare maintenance plans (various levels) for extended coverage and expedited support (regional availability varies)

Product Warranty

• ZD600 Series: minimum two-year limited warranty from shipment (terms vary by region)

Markets and Applications

• Healthcare: specimen labeling, prescription labels, lab management, patient ID wristbands, asset tagging, patient records
