Identification bracelet Z-Band

Product overview

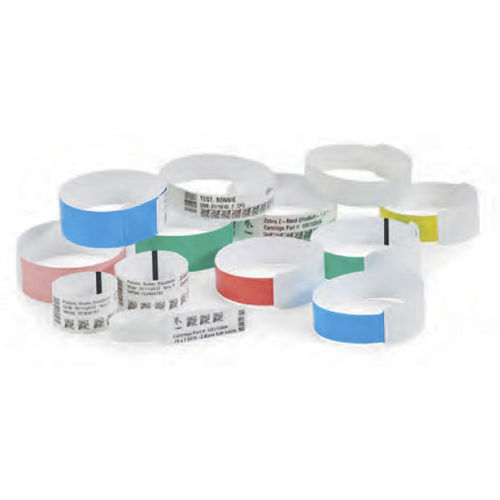

Z-Band UltraSoft wristbands provide reliable patient identification with a soft-feel polypropylene construction optimized for sensitive skin. Designed for direct thermal printing, these wristbands deliver durable barcodes and human-readable information that remain scannable after exposure to common hospital substances.

Key features

• Direct thermal wristband for patient ID—suitable for short-term clinical use.
• Ultra-soft, flexible polypropylene with soft-feel coating to reduce skin irritation.
• Available in standard and bracelet shapes; bracelet includes removable carrier for size adjustment without reducing information area.
• Silver antimicrobial coating to slow material degradation.
• MR‑Safe design — no metal content on or in the band.
• Manufactured with ISO 9001 quality control and 23‑point inspection for consistent image durability and scan performance.

Material construction
Facestock: Gloss white thermal imaging polypropylene, 178 µm ±10%
Adhesive tab: Permanent rubber adhesive on kraft liner, 90 µm ±10%
Environment: Indoor use; cold-temperature compatible

Temperature performance
Service temperature range: -40ºF to 140ºF / -40°C to 60°C

Recommended printers and settings
Printers: Direct thermal (no ribbon). Recommended: Zebra ZD510-HC/HC100 wristband printers; desktop and thermal printers ZT200 Series and ZT410 with 25 mm media holder.
Print settings:
ZPL: Darkness 22; Print speed 50 mm/sec (2 ips).
EPL: Darkness 13; Print speed 50 mm/sec (2 ips).
Zebra ZD510-HC/HC100: automatic settings programmed.

Durability testing
Image durability of a 5 mil narrow-bar 16-digit Code 128 barcode was evaluated after exposure to solvents, abrasion and water. Test pass = immediate scan without repeated attempts.

• Abrasion: Pass — exceeds 1,000 rubs with a dry crocking cloth.
• Water: Pass — withstands full immersion in 40°C water up to 6 hours.
• 91% IPA / 70% IPA / Purell: Pass — withstands 50 rubs with soaked applicator.
• Betadine: Pass — withstands 100 rubs with soaked applicator.
• Tensile strength: Pass — withstands up to 45 lb (≈20 kg) of force.

Product performance and suitability
Recommended storage: 72ºF / 22ºC at 50% RH.
Intended use: Indoor, short-term patient identification — test in the specific clinical application.
Part number / document reference: SS-ZBand-UltraSoft (05/20/2020 HTML).

Chemical resistance (examples)

• Blood: Recommended
• Body fluids: Recommended
• Salt water: Recommended
• Water: Recommended
• Window cleaner: Not recommended
• Alcohol / IPA: Recommended
• Ammonia: Not recommended
• Bleach: Not recommended

Regulatory and compliance
BPA- and latex-free. Made primarily of polypropylene and vinyl. Direct thermal imaging chemistry consists mainly of leuco dyes and developers; inks/varnishes are UV varnishes and water-based inks. No metal content — considered MR‑Safe.

Markets and applications

• Healthcare: Patient identification in hospitals and clinical settings.
• Patients with delicate or sensitive skin who require soft-feel wristbands.

Technical specifications

• Product name: Z-Band UltraSoft wristband
• Facestock thickness: 178 µm ±10%
• Adhesive tab: Permanent rubber adhesive on kraft liner, 90 µm ±10%
• Service temperature: -40°C to 60°C (-40°F to 140°F)
• Recommended printers: Direct thermal; Zebra ZD510-HC/HC100, ZT200 Series, ZT410 (25 mm media holder)
• Print settings: ZPL Darkness 22 / Speed 50 mm/sec; EPL Darkness 13 / Speed 50 mm/sec
• Durability: Passes abrasion, solvent and water immersion tests per manufacturer data
• Tensile strength: Up to 45 lb (≈20 kg)
• Coating: Soft-feel coating; silver antimicrobial coating
• Compliance: BPA- and latex-free; MR‑Safe
• Storage: 72ºF / 22ºC at 50% RH recommended
