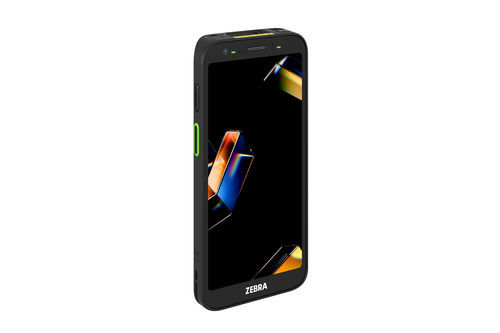

Healthcare facility medical computer TC5 Series

portablemobileSSD 256 GB

Overview
The TC5 Series builds on the TC52/TC57 platform to deliver all‑touch handheld mobile computers for frontline operations. The family combines rugged hardware, configurable memory and battery options, enterprise scanning and optional RFID to support indoor and outdoor workflows across supply chain, retail, field service and healthcare.

Models included in the TC5 Series

• TC501
• TC58e
• TC53e
• TC53e-RFID
• TC58
• TC53
• TC57x
• TC52ax / TC52x / HC variants

Key capabilities and benefits

• Rugged handheld design suitable for frontline use with drop, dust and water resistance (model-dependent ratings).
• High-performance compute and RAM/flash configurations for modern mobile apps and multitasking.
• Advanced data capture: enterprise 1D/2D scan engines, advanced/long-range options and integrated short-range UHF RFID on selected SKUs.
• Modern connectivity: Wi‑Fi 6E/Wi‑Fi 7 (model dependent), 5G on cellular SKUs, Bluetooth, NFC and GNSS for location services.
• Battery options: standard and extended-capacity batteries with some models supporting wireless charging for sustained shift operation.
• Android platform with vendor lifecycle support and enterprise features.
• Integrated software ecosystem for deployment, security and device management.

Notable model highlights

• TC501 — 6 in display, Wi‑Fi 7 and 5G support, LPDDR5/RAM options, UFS 3.1 storage options and extended battery capacities.
• TC58e — 6 in display, Wi‑Fi 6E, 5G options, multiple scan engine choices and extended battery options.
• TC53e / TC53e-RFID — Wi‑Fi 6E models optimized for indoor use; TC53e-RFID includes integrated short-range UHF RFID.
• TC58 / TC53 — Proven TC5 platforms with enterprise scanning, multiple memory/battery configurations and modern wireless options.

Software & Ecosystem

• Zebra DNA suite and management tools for deployment, security and device optimization.
• LifeGuard for Android for extended security updates and lifecycle maintenance.
• Developer SDKs (EMDK and others) to integrate scanning, camera, RFID and sensors into enterprise apps.
• Workstation Connect and solutions to use devices as fixed workstations or POS endpoints.

Accessories & Support
A broad range of accessories is available including charging cradles, multi-slot chargers, vehicle mounts, holsters and battery packs. Model-specific accessory guides and specification sheets help select configurations and plan deployments.

Technical specifications

• Screen sizes: typical 6.0 in (selected variants 5.0 in).
• Operating system: Android (supported versions vary by model).
• Memory/storage examples: variants from 4 GB RAM / 32 GB flash up to LPDDR5 12 GB / UFS 3.1 256 GB on selected models.
• Wireless: Wi‑Fi 6E/7 (model dependent), 5G on cellular SKUs, Bluetooth (incl. BLE), GNSS multi-band, NFC, SIM/eSIM options and optional CBRS (region dependent).
• Data capture: SE4720/SE4770/SE55 scan engines (1D/2D/advanced range), optional integrated UHF RFID, high-resolution color cameras.
• Battery capacity: examples include ~4,680 mAh standard and extended options up to ~7,240 mAh depending on model/configuration.
• Durability: enterprise-grade rugged housings with model-specific MIL‑STD/IP ratings.
• Security & lifecycle: LifeGuard for Android support, FIPS/Common Criteria and other certifications where applicable.
• Environmental: selected models listed in EPEAT and options using recycled materials on some SKUs.
