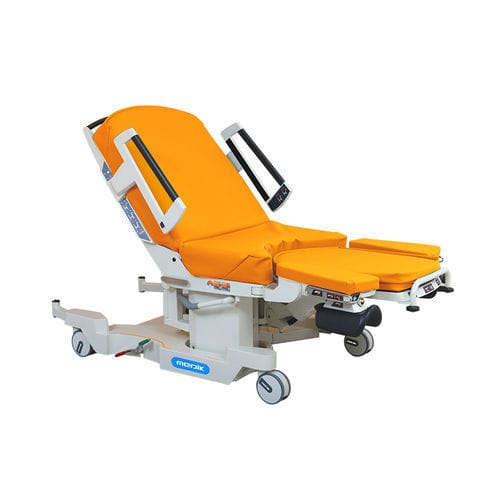

Gynecological operating table MC-D09

electrictiltingwith legrest

Product overview
The MC-D09B is a birthing bed designed to support prenatal examination, labour, delivery and postpartum recovery in hospital obstetrics. It integrates three-section electric adjustment, removable leg section and hygiene-focused materials to streamline clinical workflows and patient handling.

Key features

• Bed design for safe patient positioning during labour and delivery.
• Three-section electric adjustment for height, backrest and leg positions.
• Integrated solution for examination, labour and recovery without patient transfer.
• Trendelenburg and anti‑Trendelenburg positions for clinical flexibility.
• Removable leg section for rapid transition between examination and delivery.
• Seamless antibacterial upholstery for hygiene and easy cleaning.
• Handheld and panel controls; optional foot switch and hand remote available.
• Central locking castors for mobility and secure positioning.

General information
Model: MC-D09B
Overall size: 2122 x 980 x 600-1050 mm
Max working load (patient): 230 kg
Certificates: CE / ISO
After-sale service: Online technical support
Warranty: 5 years on frame and welds; 1 year on parts

Technical parameters
Total length of lying area: 2122 mm
Full width: 980 mm
Minimum height: 600 mm
Maximum height: 1050 mm
Back section up/down: +70° / -10°
Seat section up/down: +18.5° / 0°
Leg rests vertical: 0° / +135°
Leg rests horizontal: 0° / +60°
Foot section up/down: +22° / 0°
Trendelenburg position: 10°
Castor size: 150 mm
Maximum patient load: 230 kg

Standard accessories

• Accessory latch: 1 pair
• Stainless steel 304 waste basin: 1 unit
• Maternal assisting handle: 1 pair
• Castors: 4 pcs
• Cable: 1 pc
• Legrest: 1 pair
• Mattress: 1 pc
• IV pole socket: 2 pcs

Optional accessories

• Foot switch: 1 unit
• Backup battery: 1 set
• Stainless steel kicking bucket: 1 pair
• Hand remote controller: 1 unit
