Delivery bed MC-D01

hospitalelectricultra-low

Product overview

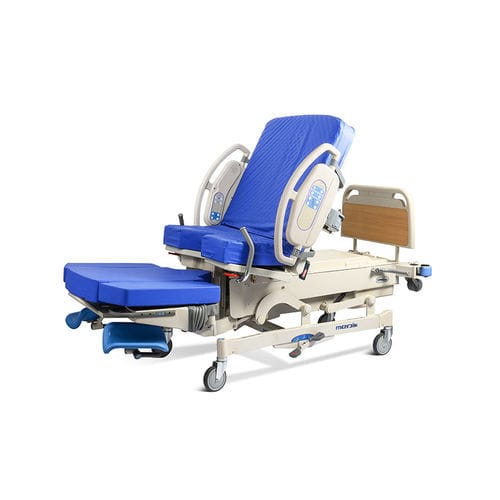

The MC-D01 birthing bed is an electric hospital bed designed for the full delivery process (pre-delivery, delivery and post-delivery). It integrates height and section adjustments, user-accessible controls and emergency features to support clinicians and improve workflow during labour.

Main features

• Adapted for the entire delivery procedure: pre-labour, active labour and immediate postpartum
• Quick conversion between standard bed and delivery table through simple operations
• Integrated side rail with user controls for patient safety and caregiver access
• Vertically adjustable foot/leg section for multiple delivery positions
• Emergency manual CPR function accessible from both sides
• Flexible calf/leg supports, rotatable and stowable under the bed when not in use
• Removable foot section for delivery access
• Central brake system on castors for rapid immobilisation
• Battery backup for essential functions in case of power loss

Specifications
Model: MC-D01
Overall dimensions (L × W × H): 2350 × 940 × 540–890 mm
Bed platform dimension: approx. 1950 × 880 mm
Height range: 540–890 mm
Back section: ≥65° electric
Seat section: ≥12° electric
Trendelenburg: approx. 8° manual
Leg section lift: approx. 110 mm
Footrest swing/fold: ≥50° / ≥75° manual
Guard rail travel: 370 mm manual
Castors: Ø150 mm with central brake
Bed capacity: 250 kg; Safe working load: 160 kg

Standard accessories

• Bed cushion: 1 set
• I.V. stand: 1 pc
• Filth basin: 1 pc
• Power cord: 1 pc
• Battery backup: 1 set

Certificates & Service
Certificates: CE / ISO
After-sale service: Online technical support
Warranty: 5 years on frame and welds; 1 year on parts

Technical characteristics

• Drive: DC motor system (24V) for quiet, smooth adjustment
• Controls: Electric for back/seat/height; manual for Trendelenburg
• Guard rails: integrated, retractable, with caregiver/patient control options
• Head/foot panels: removable for clinical access
• Mattress: medical-grade, pressure-redistributing foam cover option
• Frame: steel/plastic hybrid structure with safety rebound protection
