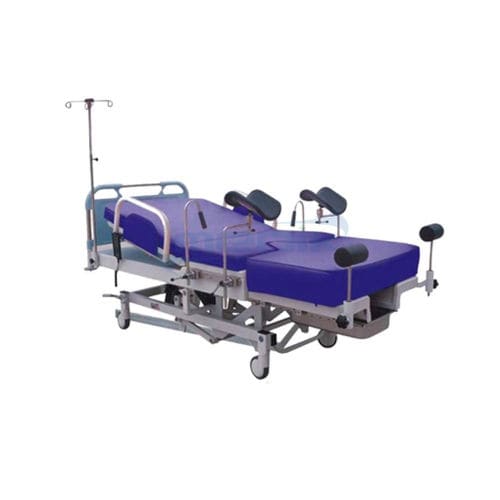

Delivery bed MC-D02

electricheight-adjustableon casters

Product overview
MEDIK MC-D02 is a multifunction obstetric delivery bed designed for the full process of childbirth: pre-delivery, delivery and post-delivery. It provides adaptable positions for clinical procedures, safe handling during transfers and ergonomic support for caregivers and parturients.

Main features

• Convertible design: quickly converts into a delivery chair/table with simple operations
• Electric adjustments: height, backrest and lateral tilt operated by hand remote
• Heavy-duty side rails with grab ring for patient support
• Removable foot section for delivery access
• Central brake / wheel lock system for stable positioning
• Battery backup for continued operation during power loss
• Hand remote control and optional foot control

Specification (key data)
Model: MC-D02
Overall size (L x W x H): 2050 x 980 x 580-950 mm
Bed length (extended): 2050 mm (80.7")
Bed length (chair position): 1450 mm (57")
Maximum width: 980 mm (38.5")
Bed frame width: 870 mm (34.2")
Height adjustment: 580 mm – 950 mm (22.8"–37.5")
Backrest inclination: 0°–70°
Trendelenburg: 12°
Reverse Trendelenburg: 7°
Loading capacity: 230 kg (500 lb)
Gynecological bowl capacity: 14 L

Accessories

• Waterproof mattress
• Waist grab handle
• Leg holders (pair)
• Filth basin
• Clamp set
• I.V. pole
• Power cord

Additional product information
Motor: Jiechang standard (Linak / Timotion / Dewert optional)
Certificates: CE, ISO
After-sale service: Online technical support
Warranty: 3 years on frame and welds; 1 year on parts

Technical characteristics / specifications

• Brand: MEDIK
• Model: MC-D02
• Usage: Obstetric delivery bed for pre-delivery, delivery and post-delivery care
• Controls: Electric remote for height, backrest and lateral tilt
• Special positions: Trendelenburg and reverse Trendelenburg
• Mobility & stability: Central brake system and directional castors
• Wheels: Ø125–150 mm (depending on configuration)
• Loading capacity: 230 kg
• Gynecological bowl: 14 L
• Motor options: Jiechang (standard); Linak / Timotion / Dewert (optional)
• Certificates: CE, ISO
• Warranty: 3 years on frame and welds; 1 year on parts
