Delivery bed MC-C13

manualheight-adjustable3-section

Product overview

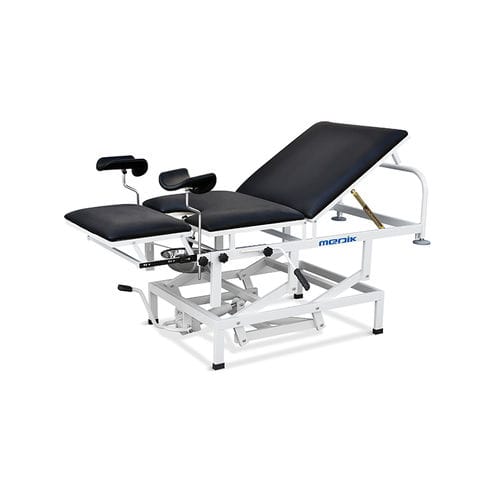

The MC-C13 is a compact, multifunctional manual delivery and gynecology bed designed for clinical delivery, examinations and minor procedures. Height is adjustable via hydraulic pump (600–900 mm) to suit different patient heights and caregiver ergonomics. The concealable leg section converts the bed into a table position for examinations or procedures. Intended as an economical, reliable solution for birthing rooms and outpatient gynecology.

Main features

• Powder-coated steel frame
• Foam mattress, leather-covered and waterproof
• Removable foot-section mattress
• Foot section mounted on silent sliding rails under the mainframe
• Backrest adjustable by ratchet (0–70°)
• Height adjustable by hydraulic pump (600–900 mm)
• Fixing clamp for anatomical knee crutches
• Large stainless-steel sliding tray for liquid collection under the seat
• Mounted on four rubber feet
• Knockdown construction for transport and installation

Technical parameters
Model: MC-C13
Overall size (L×W×H): 1800 × 800 × 600–900 mm
Height adjustment: 600–900 mm
Back section adjustment: 0–70°
Loading capacity: 250 kg
Leg section: concealable / pack up

Additional information
Structure: Powder-coated steel frame with foam mattress (leather-covered, waterproof)
Application: Childbirth, gynecology, outpatient procedures
Certificates: CE / ISO
After-sale service: Online technical support
Warranty: 3 years on frame and welds; 1 year on parts

Technical specifications

• Model: MC-C13
• Overall size: 1800 × 800 × 600–900 mm
• Height adjustment range: 600–900 mm (hydraulic pump)
• Backrest adjustment: 0–70° (ratchet)
• Loading capacity: 250 kg
• Leg section: concealable to table position; removable foot mattress
• Frame: powder-coated steel
• Mattress: foam, leather-covered and waterproof
• Accessories: fixing clamp for anatomical knee crutches; stainless-steel sliding tray for liquid collection
• Mounting: four rubber feet; knockdown construction
• Certificates: CE, ISO
• Warranty: 3 years on frame and welds; 1 year on parts
