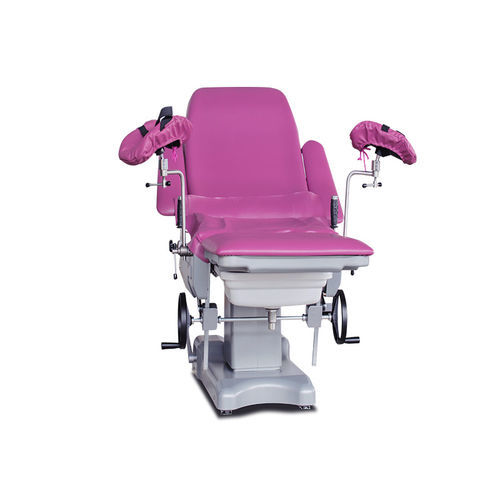

Gynecological operating table MC-H02
hydraulicheight-adjustableTrendelenburg

gynecological operating table
gynecological operating table
gynecological operating table
Add to favorites
Compare this product


Characteristics

Applications
gynecological
Operation
hydraulic
Features
height-adjustable, Trendelenburg, reverse Trendelenburg

Description

Main features - The MC-H02 hydraulic obstetric table is equipped with a auxiliary table for gynecological examinations and treatments - The leg segment (auxiliary table) can be easily detached - Height adjustment of the table realized due to hydraulic pump regulated by foot pedal - Back segment inclination angle regulated by gas spring - Trendelenburg and Reverse-Trendelenburg positions are realized by ratchet system - The chassis is constructed of steel with ABS cover - With 3 wheels to move the table and it is easy to use the hammer to lock the wheels anchored to the floor Technical parameter Model - MC-H02 Gynaecological bowl capacity - 468*338*125mm Table’s length - 74" (1850 mm) Table’s length in chair position - 52.4" (1310 mm) Table frame width - 24.4" (610 mm) Height adjustment - 650mm-900mm (hydraulic pump) Back rest inclination angle - 70° (gas spring) Trendelenburg position - 20° (Ratchet system) Reverse Trendelenburg position - 10° (Ratchet system) Armrest swing out - 90° Permissible load - 160kgs

VIDEO

Catalogs

No catalogs are available for this product.

See all of Zhangjiagang Medi Medical Equipment‘s catalogs
