Emergency stretcher YA-PS02EtransporttraumaTrendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- emergency, trauma, transport
- Functioning
- on casters, height-adjustable, with adjustable backrest, hydraulic, Trendelenburg, reverse Trendelenburg, radiolucent
- Material
- aluminum, plastic
- Other characteristics
- 3-section
- Length
2,150 mm
(84.65 in)- Width
800 mm
(31.5 in)- Height
Min.: 560 mm
(22.05 in)Max.: 890 mm
(35.04 in)- Loading capacity
225 kg
(496.04 lb)
Description
Product Overview

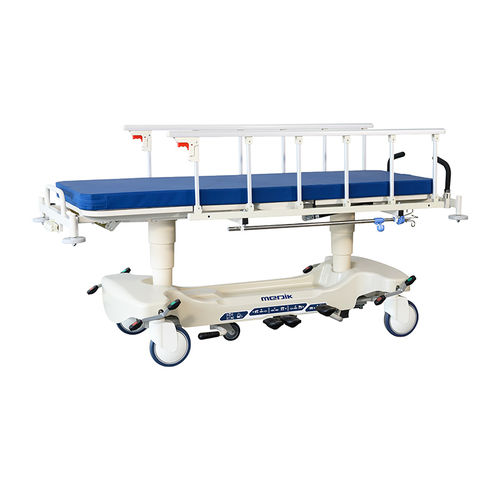

The YA-PS02E hydraulic patient stretcher is designed for safe and efficient intra-facility transport of trauma and emergency patients. Height and tilt (Trendelenburg and reverse Trendelenburg) are adjusted via hydraulic actuators operated by foot pedals. The bottom cover has a durable, easy-to-clean plastic surface suitable for hospital use. The stretcher is adapted for transfers to/from emergency, recovery, preoperative and postoperative areas and offers an economical solution for patient transport.
Features
Other Information
Technical Specifications
The YA-PS02E hydraulic patient stretcher is designed for safe and efficient intra-facility transport of trauma and emergency patients. Height and tilt (Trendelenburg and reverse Trendelenburg) are adjusted via hydraulic actuators operated by foot pedals. The bottom cover has a durable, easy-to-clean plastic surface suitable for hospital use. The stretcher is adapted for transfers to/from emergency, recovery, preoperative and postoperative areas and offers an economical solution for patient transport.
Features
- Structure: Steel frame with electrophoresis painting
- Double-column base allowing C-arm access for radiography
- Push handles at head and foot for manoeuvring
- One pair of collapsible aluminium-alloy side rails
- Four 200 mm diameter castors with central braking system
- Retractable fifth wheel for directional steering
- Chassis with oxygen cylinder holder and attendants’ storage holders
- Foot pedals on both sides for HI-LO, Trendelenburg and Reverse-Trendelenburg adjustments
- Individual wheel pedals acting as central brake on each castor
- Four corner bumpers for impact protection
- Patient surface available in translucent X‑ray material (optional)
- Monitor or defibrillator shelf (optional)
Other Information
- Model: YA-PS02E
- Functions: Backrest, Footrest, Height adjustment, Trendelenburg, Reverse-Trendelenburg
- Certificate: CE / ISO
- After-sale Service: Online technical support
- Warranty: 3 years on frame and welds, 1 year on parts
- Loading capacity: 225 kg
Technical Specifications
- Model: YA-PS02E
- Overall size (L×W×H): 2150 × 800 × 560 mm (base height) / 890 mm (max)
- Height adjustment: 560–890 mm
- Back section adjustment: 0–80°
- Foot section adjustment: 0–35°
- Trendelenburg: 0–15°
- Reverse Trendelenburg: 0–15°
- Castors: Dia 200 mm
- Loading capacity: 225 kg
