Emergency stretcher YA-AS01

for ambulancestransportfolding

Product details

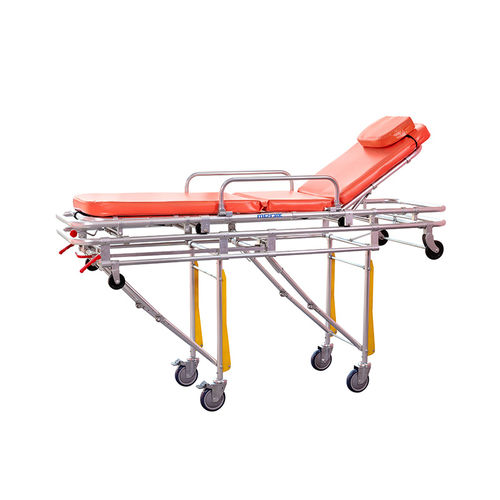

The YA-AS01 ambulance stretcher features a removable stretcher surface and a two-section frame (back and leg sections) with adjustable height. The backrest and footrest angles are adjustable to accommodate different patient and transport needs. Designed for flexible use during ambulance transfers and in venues such as gyms, fields and emergency departments; lightweight and easy to handle.

Main features

• High-strength aluminum alloy frame.
• Foam cushion and adjustable backrest for patient comfort.
• Two-section design with removable stretcher surface for independent use.
• Easy operation: a single operator can load and transfer the patient into the ambulance vehicle.
• Handles operate mechanical foldaway legs located at one end of the stretcher.
• Legs fold automatically under the stretcher during vehicle loading.
• Stretcher can be secured by the ambulance vehicle locking devices.
• Certificates: ISO, CE; Warranty: 3 years on frame and welds, 1 year on parts.

Technical parameters
Model: YA-AS01
Material: High-strength aluminum alloy
Size (Low position): 1960*550*285 mm (77.1 in x 21.6 in x 11.2 in)
Size (High position): 1960*550*925 mm (77.1 in x 21.6 in x 36.4 in)
Backrest adjustable: 0-65°
Footrest adjustable: 0-40°
Load capacity: 160 kg (352 lbs)

Characteristics / technical specifications

• Model: YA-AS01
• Ideal use: Ambulance, EMT, EMS
• Material: Aluminum alloy (high-strength)
• Certificate: ISO / CE
• After-sale service: Online technical support
• Warranty: 3-Year on frame and welds; 1-Year on parts
• Overall size (Low position): 1960*550*285 mm
• Overall size (High position): 1960*550*925 mm
• Backrest adjustable range: 0-65°
• Footrest adjustable range: 0-40°
• Load capacity: 160 kg (352 lbs)
