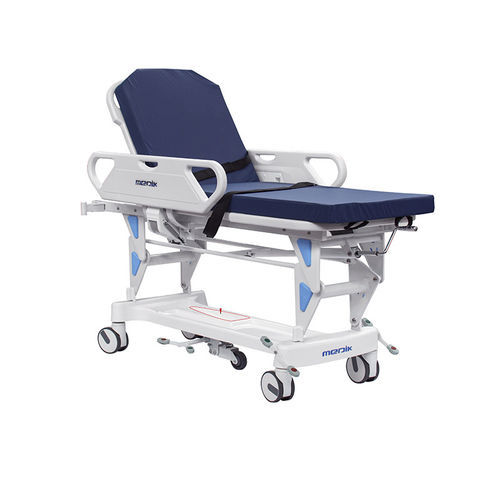

Transport stretcher trolley YA-PS05manualheight-adjustablewith adjustable backrest
Add to favorites
Compare this product
Characteristics
- Applications
- transport
- Operation
- manual
- Features
- height-adjustable, with adjustable backrest
- Accessories
- with side rails, with IV pole
- Other characteristics
- with brake system, washable
- Maximum load
250 kg
(551.16 lb)- Length
1,930 mm
(76 in)- Width
640 mm
(25 in)- Height
Min.: 540 mm
(21.3 in)Max.: 840 mm
(33.1 in)- Wheel diameter
150 mm
(5.9 in)
Description
Product overview
YA-PS05 is a manual patient transport stretcher designed for intra-hospital transfers. It provides straightforward handling for nursing staff with an ergonomic handle and steering wheel. Surfaces and side rails are ABS for easy cleaning and infection control.
Main features
Accessories
Technical parameters
Model: YA-PS05
Overall size (L x W x H): 1930 x 640 x 540 mm
Height adjustment: 540–840 mm
Backrest adjustment: 0–70°
Caster diameter: 150 mm
Loading capacity: 250 kg
Features / specifications
YA-PS05 is a manual patient transport stretcher designed for intra-hospital transfers. It provides straightforward handling for nursing staff with an ergonomic handle and steering wheel. Surfaces and side rails are ABS for easy cleaning and infection control.
Main features
- Manual height-adjustable (540–840 mm)
- Backrest adjustable 0–70° via pneumatic gas spring
- ABS tuck-away collapsible side rails
- ABS platform for easy cleaning
- Central brake system with 150 mm diameter casters
- 5th retractable central wheel for directional control
- Loading capacity: 250 kg
Accessories
- Mattress
- IV pole
Technical parameters
Model: YA-PS05
Overall size (L x W x H): 1930 x 640 x 540 mm
Height adjustment: 540–840 mm
Backrest adjustment: 0–70°
Caster diameter: 150 mm
Loading capacity: 250 kg
Features / specifications
- Materials: ABS platform and side rails; steel/aluminum frame
- Functions: manual height adjustment, pneumatic backrest adjustment, central brake, 5th retractable wheel
- Certification: CE / ISO
- Warranty: 3 years on frame and welds, 1 year on parts
- After-sales: online technical support
