Transport stretcher trolley YA-PS03

emergencymedical imagingtransfer

Product overview

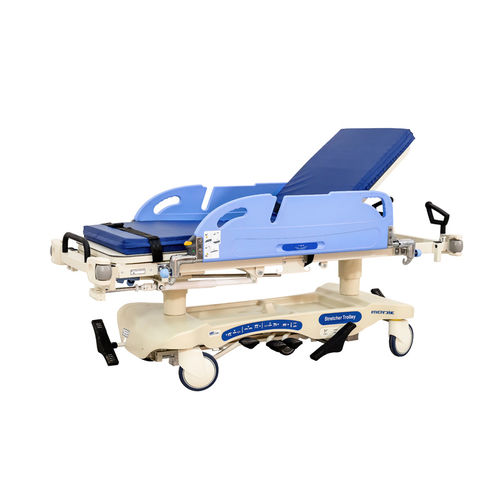

YA-PS03 is a hydraulic patient transport stretcher designed for safe, efficient transfers in clinical and emergency environments. It combines high-low hydraulic adjustment, adjustable back and knee sections, and an X‑ray compatible bed platform to support diagnostics and patient handling while maintaining ergonomic control and maneuverability.

Main features

• Back lifting system: silent double gas springs for stable, smooth adjustment.
• High-low lifting: imported hydraulic cylinder for stable height adjustment (560–890 mm).
• Knee section adjustable by crank mechanism.
• Independent foot section adjustment with gear buckle.
• Bed platform: radiolucent/transparent, fitted with a 7 cm thick waterproof mattress with zippers and safety straps.
• Frame: welded high-quality steel bent pipe construction.
• Side rails: PP resin molded full-length rails with angle indicator; can be fixed horizontally for IV/tube routing.
• Four Ø200 mm silent castors with central locking and anti-collision bumpers on corners.
• Fifth guide wheel (central) for improved directional control.
• Integrated infusion pole stored in an under-bed rack; four infusion stand jacks included.
• P-shaped push handle at head and U-shaped handle at foot for controlled maneuvering.

Accessories list

• Two side guardrails
• One set of fifth wheel
• Two gas springs for back lift
• One knee crank
• One integral bottom tray
• One infusion stand
• Four standard infusion stand jacks
• One waterproof mattress (7 cm sponge)
• Optional: recording table / monitor shelf

Technical parameters

• Model: YA-PS03
• Overall size: 2150 × 830 × 560–890 mm
• Bed size: L 1915 × W 640 mm
• Back section adjustment: 0–80° ±5°
• Knee section adjustment: 0–40° ±5°
• Foot section adjustment: 0–30° ±5°
• Trendelenburg/Reverse Trendelenburg: -18° – 18°
• Side rail height: ≥ 315 mm
• Thinnest point of side rail: ≥ 20 mm
• Load bearing of side rail: ≥ 15 kg
• Load bearing of urine bag hook: ≥ 30 kg
• Castors: Ø 200 mm
• Bottom storage plate size: ≥ 380 × 300 mm
• Load bearing of bottom storage plate: ≥ 10 kg
• Safe working load: 220 kg

Certificate / After-sale / Warranty

• Certificate: CE / ISO
• After-sale Service: Online technical support
• Warranty: 3-year on frame and welds; 1-year on parts
