Emergency stretcher YA-PS06transportfoldableon casters
Add to favorites
Compare this product
Characteristics
- Applications
- emergency, transport
- Functioning
- foldable, on casters, height-adjustable, with adjustable backrest, hydraulic
- Material
- aluminum
- Length
211 cm
(83.07 in)- Width
69 cm
(27.17 in)- Height
Min.: 46 cm
(18.11 in)Max.: 81 cm
(31.89 in)- Loading capacity
180 kg
(396.83 lb)
Description
Product description

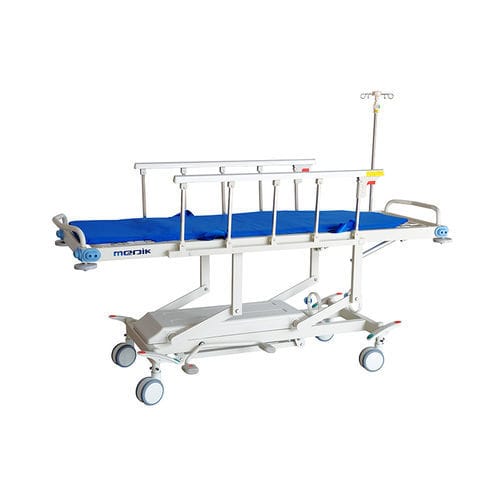

YA-PS06 is a hydraulic patient transfer stretcher designed for intra-hospital transport of patients. The stretcher combines hydraulic height adjustment operated by foot pedals, a pneumatic back section, collapsible aluminum side rails and corner bumper casters to facilitate safe, controlled transfers in hospital wards, emergency and imaging departments.
Main features
Accessories
Technical parameters
YA-PS06 Series
YA-PS06 and YA-PS06B share the same overall dimensions and safe working load (2110 × 690 × 460–810 mm; 180 kg).
Video
Product video available demonstrating operation, height adjustment and safety features of the YA-PS06.
YA-PS06 is a hydraulic patient transfer stretcher designed for intra-hospital transport of patients. The stretcher combines hydraulic height adjustment operated by foot pedals, a pneumatic back section, collapsible aluminum side rails and corner bumper casters to facilitate safe, controlled transfers in hospital wards, emergency and imaging departments.
Main features
- Hydraulic height adjustment via foot pedals (460–810 mm)
- Pneumatic back section adjustment (0–65°)
- Collapsible aluminum alloy side rails
- Central brake system with four locking casters (Ø125 mm)
- Pushing bars at both ends and corner bumper casters for impact protection
- Steel frame with powder-coated finish
Accessories
- Mattress
- IV pole
Technical parameters
- Model: YA-PS06
- Overall size: 2110 × 690 × 460–810 mm
- Height adjustment range: 460–810 mm
- Back section adjustment: 0–65°
- Caster diameter: 125 mm (5")
- Safe working load: 180 kg (395 lb)
- Certificates: CE / ISO
- Warranty: 3 years on frame and welds; 1 year on parts
YA-PS06 Series
YA-PS06 and YA-PS06B share the same overall dimensions and safe working load (2110 × 690 × 460–810 mm; 180 kg).
Video
Product video available demonstrating operation, height adjustment and safety features of the YA-PS06.
