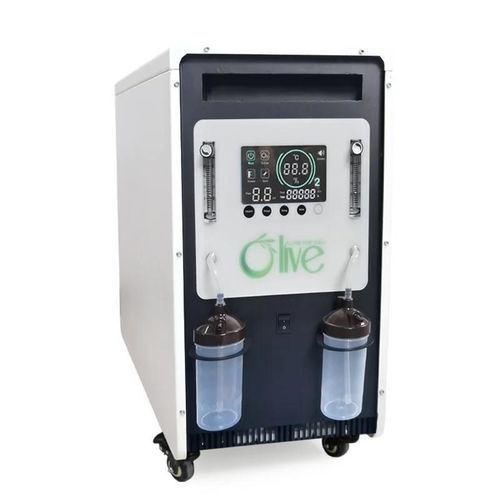

Medical oxygen concentrator 00096

hyperbariccompacthigh-purity

Short description
High-flow oxygen concentrator designed for use with hyperbaric oxygen chambers. Provides stable medical-grade oxygen concentration in elevated-pressure environments to support therapeutic hyperbaric treatments in clinical and commercial settings.

Key features

• 10 years of production experience ensuring devices meet industry standards for medical use.
• All-in-one compact design integrating essential components for installation and operation in chamber environments.
• Medical-grade oxygen delivery with consistent concentration of 90%–96% suitable for hyperbaric therapy.
• Customizable options available: branding, flow rates, concentration levels and outlet pressure to match facility requirements.

Oxygen concentrator specifications
Oxygen Flow: 10 L/min
Air Flow: 110 L/min
Voltage: AC 220V 50Hz / AC 110V 60Hz
Oxygen Concentration: 90% - 96%
Maximum Limited Pressure: 100 kPa (typical working pressure: 20 - 60 kPa)
Sound Level: ≤58 dB
Input Power: 1600 VA
Machine Dimensions: 94 × 40 × 84 cm (37 × 15.7 × 33 inch)
Warranty: 1 year

Technical specifications

• Oxygen Flow: 10 L/min
• Air Flow: 110 L/min
• Voltage: AC 220V 50Hz / AC 110V 60Hz
• Oxygen Concentration: 90% - 96%
• Maximum Limited Pressure: 100 kPa (typical working pressure: 20 - 60 kPa)
• Sound Level: ≤58 dB
• Input Power: 1600 VA
• Machine Dimensions: 94 × 40 × 84 cm (37 × 15.7 × 33 inch)
• Warranty: 1 year
