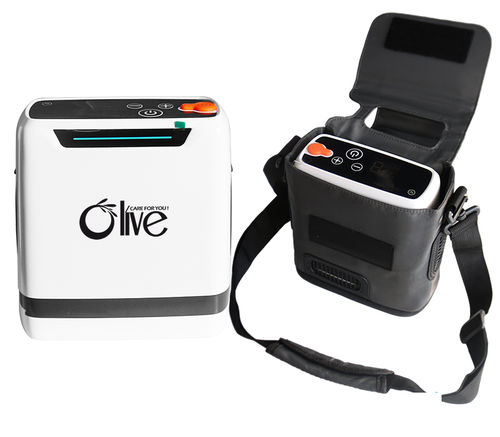

Outdoor oxygen concentrator OLV-POC5

medicalfor home usecompact

Overview
This portable pulse oxygen concentrator provides regulated oxygen therapy for use at home, in vehicles or outdoors. Compact and lightweight, it supports intermittent (pulse) oxygen delivery with an equivalent continuous output of 5 L/min (1200 ml/min). Weight: 1.98 kg (4.37 lbs, with battery). Suitable for use at altitudes up to 4,000 m (13,123 ft). MOQ: 5 pcs. Customizable options available.

Demonstration Operation
Video demonstration available (embedded on product page) showing device operation, settings and battery replacement.

Advantages and Characteristics

• Adjustable pulse flow: six pulse levels (1–6) to tailor oxygen delivery to patient needs.
• Portable design: approximately 1.98 kg with battery for easy transport and travel use.
• Extended battery operation: supports typical daily activities with 1.5–4.5 hours runtime depending on pulse setting.
• Detachable molecular sieve: replaceable sieve module (CECA referenced) to maintain oxygen purity and simplify maintenance.
• Multi-condition alarms: low oxygen concentration, power failure and other safety alerts.
• Inhalation-synchronized pulse delivery to conserve battery and provide oxygen on demand.

Specifications
Charging voltage: 100V–230V AC
Maximum flow: 1200 ml/min (equivalent continuous oxygen supply: 5 L/min)
Oxygen concentration: 90% ± 3% (gears 1–6)
Input power: 152 VA
Flow control: 6 pulse levels
Machine size: 19.9 × 18.3 × 8.6 cm (7.8 × 7.2 × 3.4 in)
Machine weight: 1.98 kg (4.37 lbs, with battery)
Battery charging time: within 2.5 hours
Battery operation time: approximately 1.5–4.5 hours (depending on pulse setting)
Sound level: ≤ 60 dB

Technical specifications

• Charging voltage: 100V–230V AC
• Maximum flow: 1200 ml/min (equivalent continuous oxygen supply: 5 L/min)
• Oxygen concentration: 90% ± 3% (gears 1–6)
• Input power: 152 VA
• Flow rate: 6 pulse levels (pulse dose delivery)
• Machine size: 19.9 × 18.3 × 8.6 cm (7.8 × 7.2 × 3.4 in)
• Machine weight: 1.98 kg (4.37 lbs, with battery)
• Battery charging time: within 2.5 hours
• Battery operation time: approximately 1.5–4.5 hours (depending on pulse setting)
• Sound level: ≤ 60 dB
