Physical endurance intermittent hypoxic therapy unit OLV-10H

hypoxic trainingtransportable

Product Overview
The OLV-10H Hypoxic Generator is designed for simulated altitude training in gyms and sports centers. It produces low-oxygen (hypoxic) air using only ambient air and electricity, allowing athletes to train in a reduced-oxygen environment to enhance performance and endurance. CE-certified for safety and performance assurance. MOQ: 5 units. Customizable options are available.

What is Simulated High Altitude Training?
The generator is a portable device that uses only air and electricity to produce a stream of clean, low-oxygen air. Connect the machine to a breathing mask to power workouts on a cycle trainer or treadmill, or to a sleep canopy for simulated high-altitude sleep. The machine is adjustable and can simulate altitudes up to 6500 m. It is suitable for personal home use, professional sports centers, and teams. (Demo video available on the product page.)

Product Features

• Lightweight & Portable: Equipped with wheels for easy movement.
• Adjustable Gears: Features three adjustable gears.
• Simulated Altitude Range: Simulate altitudes from 1000 m to 6500 m.
• Dual Output: Provides both hypoxic and hyperoxic outputs simultaneously.

• Low Oxygen Concentration: Offers a range from 8.5% to 19.8%.
• High Oxygen Concentration: Delivers oxygen concentration from 78% to 92%.

Technical Parameters
High Oxygen Delivery Rate: 10 L/min
Hypoxic Delivery Rate: 100 L/min
Voltage: AC220V ±22V, 50Hz ±1Hz; AC110V ±15V, 60Hz ±1Hz
Output Pressure: 20 kPa ~ 60 kPa
Sound Level: ≤48 dB
Net Weight: 20 kg
Power Consumption: 800 VA
Size: 34.4 x 30.6 x 56.5 cm

Oxygen Purity vs. Simulated Altitude (examples by flow and gear)
Flow 10 L — Gear 1.0: 8.5% / 6700 m; Gear 1.5: 10% / 5700 m; Gear 2.0: 11.5% / 4700 m; Gear 2.5: 13.0% / 3800 m; Gear 3.0: 14.5% / 3000 m
Flow 8 L — Gear 1.0: 10.2% / 5600 m; Gear 1.5: 11.4% / 4800 m; Gear 2.0: 12.8% / 3900 m; Gear 2.5: 14.2% / 3100 m; Gear 3.0: 15.5% / 2400 m
Flow 6 L — Gear 1.0: 12.7% / 4000 m; Gear 1.5: 13.8% / 3300 m; Gear 2.0: 15.0% / 2600 m; Gear 2.5: 16.2% / 2000 m; Gear 3.0: 17.2% / 1600 m
Flow 4 L — Gear 1.0: 14.8% / 2800 m; Gear 1.5: 15.5% / 2300 m; Gear 2.0: 16.2% / 2000 m; Gear 2.5: 17.0% / 1650 m; Gear 3.0: 17.5% / 1450 m
Flow 2 L — Gear 1.0: 18.2% / 1100 m; Gear 1.5: 18.5% / 1000 m; Gear 2.0: 18.8% / (approx); Gear 2.5: 19.3% / (approx); Gear 3.0: 19.8% / (approx)

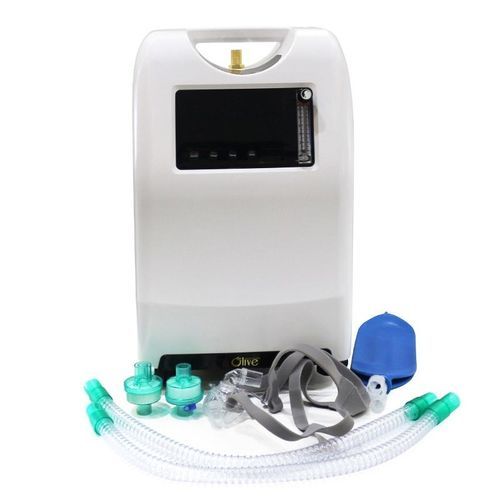

Accessories / Included Items

• Machine: 1 Set
• Breathing Bag: 1 Piece
• Mask with strap: 1 Piece
• Bacterial filter: 2 Pieces
• Air delivery tube: 2 Pieces
• T-connector: 1 Piece

Notes
Product is intended for simulated altitude training and requires appropriate user guidance and safety precautions. CE certification is indicated for this model.

Technical Specifications

• Model: OLV-10H
• High Oxygen Delivery Rate: 10 L/min
• Hypoxic Delivery Rate: 100 L/min
• Voltage: AC220V ±22V, 50Hz ±1Hz; AC110V ±15V, 60Hz ±1Hz
• Output Pressure: 20 kPa ~ 60 kPa
• Sound Level: ≤48 dB
• Net Weight: 20 kg
• Power Consumption: 800 VA
• Size: 34.4 x 30.6 x 56.5 cm
• Simulated Altitude Range: 1000 m to 6500 m
• Oxygen concentration ranges: low 8.5%–19.8%; high 78%–92%
