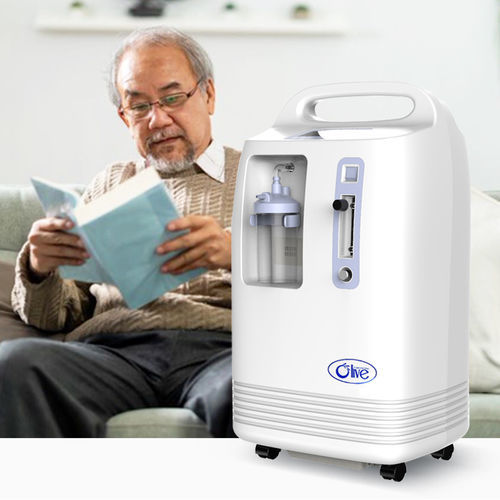

Medical oxygen concentrator OLV-5S

for home usehome careon casters

Product Overview
Olive's 5 L/min oxygen concentrator OLV-5S is a stationary unit designed for continuous home oxygen therapy. Equipped with a high-efficiency HEPA filter (0.3 μm) and engineered for low noise, it provides reliable oxygen delivery for long-term domestic use.

Features

• Medical grade design suitable for home oxygen therapy applications.
• Mobility with stability: integrated wheels and brakes for easy relocation within clinical or home environments.
• High oxygen concentration: nominal range 90%–96% (typical performance within 90%–96%).
• Optional wireless remote control for adjustment without direct device access.
• Multi-safety alarms: low oxygen concentration, power failure, high/low pressure alerts to support patient safety.
• Continuous 24/7 operation capability for uninterrupted oxygen supply.

Oxygen Concentrator Specification
Flow range: 0–5 L/min
Oxygen concentration: 90%–96%
Maximum limited pressure: 100 KPa (normal working pressure: 20–60 KPa)
Sound level: ≤45 dB
Input power: 500 VA
Timer setting: 30–180 min
Dimensions: 35 × 25 × 67 cm (13.7 × 9.8 × 26 in)
Warranty: 2 years

Packaging

• Package: 1 unit / 1 carton
• G.W / N.W: 25 / 23 kg
• Carton size: 43 × 38 × 75 cm
• 20'GP capacity: 234 sets
• 40'GP capacity: 486 sets

Optional Functions

• Nebulizer: medication delivery via aerosol (nebulizing rate approx. 0.15 ml/min).
• Dual flow: simultaneous support for two users.
• Low-purity alarm: alerts when oxygen concentration falls below set threshold.
• Wireless remote control: optional remote for parameter adjustment.

Technical Specifications

• Model (commercial name): OLV-5S
• Brand: Olive
• Flow range: 0–5 L/min
• Oxygen concentration: 90%–96%
• Maximum limited pressure: 100 KPa (normal: 20–60 KPa)
• Sound level: ≤45 dB
• Input power: 500 VA
• Timer: 30–180 minutes
• Dimensions: 35 × 25 × 67 cm
• Warranty: 2 years
• MOQ: 5 units
• Packaging: 1 unit per carton; carton size 43 × 38 × 75 cm; G.W/N.W: 25/23 kg
• Optional features: nebulizer, dual flow, low-purity alarm, wireless remote control
• Intended use: stationary quiet home oxygen therapy; HEPA filtration to 0.3 μm
