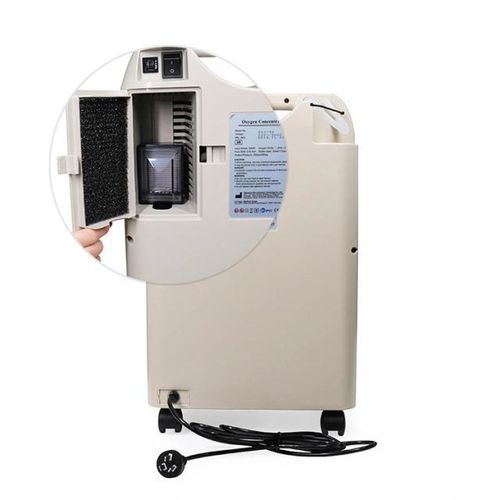

Medical oxygen concentrator OLV-5A

home carefor home useon casters

Overview
The OLV-5A is a 5 L/min medical-grade oxygen concentrator designed for continuous, reliable use in clinical and home-care settings. It provides stable oxygen delivery and includes mobility and safety features suited to healthcare environments.

Demonstration
A demonstration operation video is available on the product page.

Advantages and Characteristics of OLV-5A Oxygen Concentrators

• Medical grade: CE medical certification confirming compliance with applicable safety and performance standards.
• Wheels with brakes: Mobile design with lockable casters for secure placement.
• High oxygen concentration: Delivers stable oxygen purity of 90%–96% across the 0–5 L/min flow range.
• Large LED display: Displays total working hours and current run time for monitoring and maintenance planning.
• Voice function: Voice prompts for status updates and user guidance.
• Automatic alarm system: Alerts for power failure, low voltage and low oxygen purity.
• Long-lasting performance: Engineered for continuous operation up to 15,000 hours.

Oxygen concentrator specifications
Nebulizer function: OLV-5AW
Dual Flow: Optional
Flow range: 0-5 L/min
Oxygen concentration: 90%-96%
Maximum limited pressure: 100 kPa (typical working pressure: 20–60 kPa)
Sound level: ≤45 dB
Input power: 500 VA
Machine dimensions: 34 x 30 x 56 cm (13 x 11.8 x 22 in)
Warranty: 2 years

Packaging

• Package: 1 pcs / 1 carton
• G.W / N.W: 17 / 15 kg
• Carton size: 44 x 39 x 69 cm (single carton), 45 x 40 x 71 cm (double cartons)
• 20'GP: 210 sets
• 40'GP: 435 sets

Technical specifications

• Model: OLV-5A
• Flow: 0–5 L/min
• Oxygen purity: 90%–96%
• Sound level: ≤45 dB
• Power consumption: 500 VA
• Dimensions: 34 x 30 x 56 cm
• Warranty: 2 years
• Optional: Dual flow, nebulizer function (OLV-5AW)
