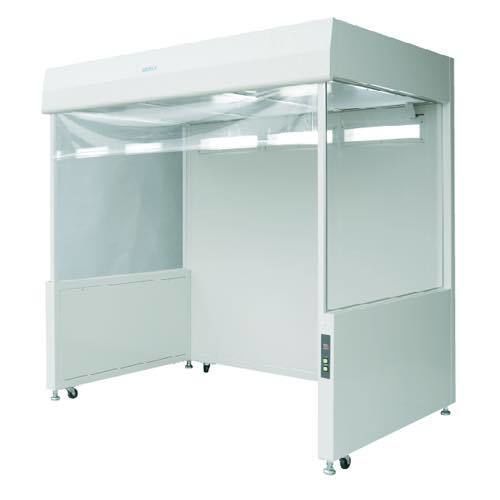

HEPA filtration unit KLBM

dustairprocess

Application
Device developed to clean production lines. Designed for use on large assembly or processing lines. Slim and lightweight units allow simplified installation and integration into existing lines.

Key points

• Standard unit depths: 700 mm (KLBM‑Y type) and 1310 mm (KLBM‑X type).
• Length: supports up to 7.6 m; longer configurations available on request.
• FFU uses a DC brushless motor for reduced power consumption.

Specifications (KLBM-1245X)
Model: KLBM-1245X
Collection efficiency: ≥99.99% for 0.3 µm particles
Filter unit: MAC‑ⅡA‑151DCCON ×2
Collection elements: Main filter: HEPA filter
Pre-filter: saran net processed material
Airflow capacity: approx. 30 m³/min
Outlet air velocity: approx. 0.37 m/sec
Noise: approx. 59–64 dBA (depends on number of units)
Power supply: AC100V 1Φ 50/60Hz or AC200V 1Φ 50/60Hz
Installed power: approx. 400 VA
Lighting: 36W twin fluorescent ×2
Weight: approx. 300 kg
Construction: Body: painted steel plate
Front anti-entrapment panel: antistatic soft transparent PVC curtain
Window panel: colorless transparent acrylic
Lighting cover: milky white acrylic

Specifications (KLBM-1245Y)
Model: KLBM-1245Y
Collection efficiency: ≥99.99% for 0.3 µm particles
Filter unit: MAC‑ⅡA‑101DCCON ×2
Collection elements: Main filter: HEPA filter
Pre-filter: saran net processed material
Airflow capacity: approx. 20 m³/min
Outlet air velocity: approx. 0.51 m/sec
Noise: approx. 56–61 dBA (depends on number of units)
Power supply: AC100V 1Φ 50/60Hz or AC200V 1Φ 50/60Hz
Installed power: approx. 360 VA
Lighting: 36W twin fluorescent ×2
Weight: approx. 220 kg
Construction: Body: painted steel plate
Front anti-entrapment panel: antistatic soft transparent PVC curtain
Window panel: colorless transparent acrylic
Lighting cover: milky white acrylic

Features & summary

• Product name: Line booth (KLBM) series
• Supported length: up to 7.6 m (longer on request)
• Standard unit depths: 700 mm (KLBM‑Y) / 1310 mm (KLBM‑X)
• Collection efficiency: ≥99.99% for 0.3 µm particles
• Filters: Main HEPA filter; pre-filter: saran net processed material
• Example filter units: MAC‑ⅡA‑151DCCON ×2 (X type), MAC‑ⅡA‑101DCCON ×2 (Y type)
• Airflow: approx. 20–30 m³/min (varies by model)
• Outlet velocity: approx. 0.37–0.51 m/sec (varies by model)
• Noise: approx. 56–64 dBA (varies by unit count)
• Power: AC100V 1Φ 50/60Hz or AC200V 1Φ 50/60Hz
• Installed power: approx. 360–400 VA (varies by model)
• Lighting: 36W twin fluorescent ×2
• Weight: approx. 220 kg (Y type) – 300 kg (X type)
• Construction: Body: painted steel plate; front panel: antistatic soft transparent PVC curtain; window: colorless transparent acrylic; lighting cover: milky white acrylic
