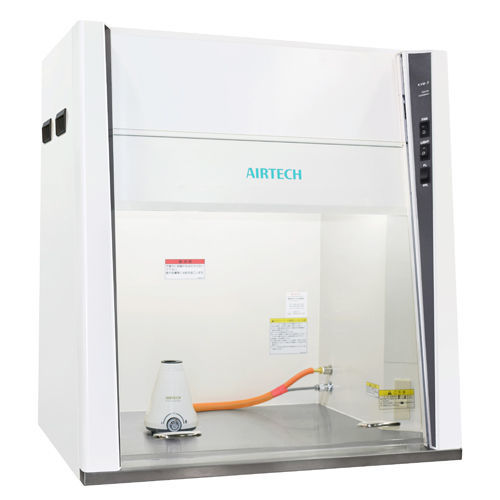

Clean bench for the cosmetics industry KVM series

for tissue culturefor the pharmaceutical industryfor the food industry

Product application
Bench-top clean bench available in two widths: 750 mm (KVM-757) and 1000 mm (KVM-1007). Features a slanted sliding shutter for improved ergonomics and DC brushless motor for reduced power consumption.

Key points

• Slanted sliding shutter design enhances operator access and ergonomics.
• DC brushless motor reduces power consumption by more than 30% compared with conventional units.

Specifications (KVM-757)
Model: KVM-757
Cleanliness: ISO-5 (Class 100)
Collection efficiency: ≥99.99% for 0.3 µm particles
Filter elements: Main filter – low-pressure-loss HEPA; Pre-filter – round saran net filter
Airflow: approx. 5.0 m³/min
Air velocity: approx. 0.34 m/s
Power supply: AC100V 1Φ 50/60Hz
Power consumption: approx. 60 W (excluding outlet)
Blower: 1 unit (DC brushless motor)
LED lighting: 5.3 W × 2
Germicidal lamp: 15 W × 1 (interlocked to operate only when shutter is fully closed)
Circuit protector: 10 A (including outlet)
Weight: approx. 50 kg
Construction: Body – painted steel; Worktop – SUS304 (hairline finish)

Specifications (KVM-1007)
Model: KVM-1007
Cleanliness: ISO-5 (Class 100)
Collection efficiency: ≥99.99% for 0.3 µm particles
Filter elements: Main filter – low-pressure-loss HEPA; Pre-filter – round saran net filter
Airflow: approx. 8.0 m³/min
Air velocity: approx. 0.40 m/s
Power supply: AC100V 1Φ 50/60Hz
Power consumption: approx. 90 W (excluding outlet)
Blower: 2 units (DC brushless motors)
LED lighting: 8.2 W × 2
Germicidal lamp: 15 W × 1 (interlocked to operate only when shutter is fully closed)
Circuit protector: 15 A (including outlet)
Weight: approx. 60 kg
Construction: Body – painted steel; Worktop – SUS304 (hairline finish)

Features / Technical specifications

• Series: KVM series (bench-top clean benches: KVM-757, KVM-1007)
• Applications: electronics/semiconductors & LCD, pharmaceuticals & cosmetics, hospitals, food, universities & research institutes, regenerative medicine and other clean work environments
• Performance: ISO-5 (Class 100) level cleanliness; particle collection ≥99.99% at 0.3 µm
• Energy saving: DC brushless motors for significantly reduced power consumption
• Safety: germicidal lamp interlocked to operate only when shutter is fully closed
• Materials: painted steel body with SUS304 worktop (hairline finish)
