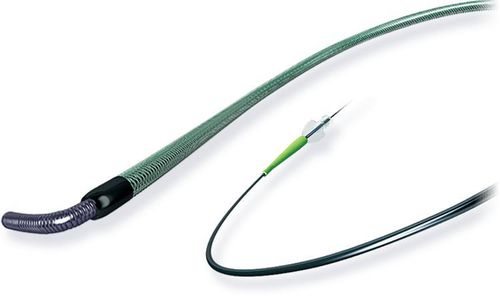

Guiding catheter Tellus

peripheralatraumatic tip

Product overview
ASAHI Tellus is a guiding catheter for peripheral interventional radiology. It combines a soft tapered tip for atraumatic navigation, a composite-braid shaft for kink resistance and enhanced pushability, and a lumen sized to deliver a wide range of embolic materials. Intended for use with compatible microcatheters, guidewires and contrast injection protocols.

Tip
■ Smooth tapered edge processing creates a soft, flexible tip that facilitates atraumatic vessel navigation.

• A highly stable tip that prevents kick-back and disengagement from target anatomy
• Controlled pushability to achieve super-selective microcatheter positioning

Shaft braiding
Unique composite braid using two wires of different thickness delivers kink resistance, improved shaft rigidity and a larger internal lumen for embolic delivery.

• Enhanced trackability through tortuous peripheral anatomy
• Improved torque transmission and push control for precise placement

Flow Rate / Setting parameter
Flow rate examples shown as measured under the conditions below. Setting parameter: Temperature of contrast medium: 37℃, Linear rise seconds: 0.3s

• Iodine content 300 mg/ml — 6.0 ml/s (10 ml volume)
• Iodine content 370 mg/ml — 3.0 ml/s (10 ml volume)

Note: Actual operational flow rate may be lower depending on contrast viscosity and clinical conditions. Dead space volume measured with connected clinical equipment.

Product Spec (table)

• O.D. (Distal/Proximal): 0.63/0.94 mm (1.9/2.8 Fr)
• I.D. (Distal/Proximal): 0.48/0.64 mm (0.019/0.025 in)
• Tip Shape: Straight / Angle
• Max. GW: 0.41 mm (0.016 in)
• Usable Length: 105 cm / 125 cm / 150 cm
• Structure: Composite braid (see structure illustration)
• Category: Guiding catheter

Order information (catalog variants)

• TLS105-16Y — Catalog No.: TLS105-16Y — Usable Length: 105 cm — O.D.: 0.63/0.94 mm — I.D.: 0.48/0.64 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Straight — Max. Pressure (distal open): 6895 kPa (1000 psi) — Accessory: Y-connector set
• TLS105-16AY — Catalog No.: TLS105-16AY — Usable Length: 105 cm — O.D.: 0.63/0.94 mm — I.D.: 0.48/0.64 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Angle — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
• TLS125-16Y — Catalog No.: TLS125-16Y — Usable Length: 125 cm — O.D.: 0.63/0.94 mm — I.D.: 0.48/0.64 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Straight — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
• TLS125-16AY — Catalog No.: TLS125-16AY — Usable Length: 125 cm — O.D.: 0.63/0.94 mm — I.D.: 0.48/0.64 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Angle — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
• TLS150-16Y — Catalog No.: TLS150-16Y — Usable Length: 150 cm — O.D.: 0.63/0.94 mm — I.D.: 0.48/0.64 mm — Max. GW: 0.41 mm — Coating Length: 100 cm — Tip Shape: Straight — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
• TLS150-16AY — Catalog No.: TLS150-16AY — Usable Length: 150 cm — O.D.: 0.63/0.94 mm — I.D.: 0.48/0.64 mm — Max. GW: 0.41 mm — Coating Length: 100 cm — Tip Shape: Angle — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set

Notes
All data above were obtained by company-standardized tests and may differ from industry-standardized tests. Data do not guarantee identical performance for all devices. Trademarks noted on page belong to the manufacturer.
