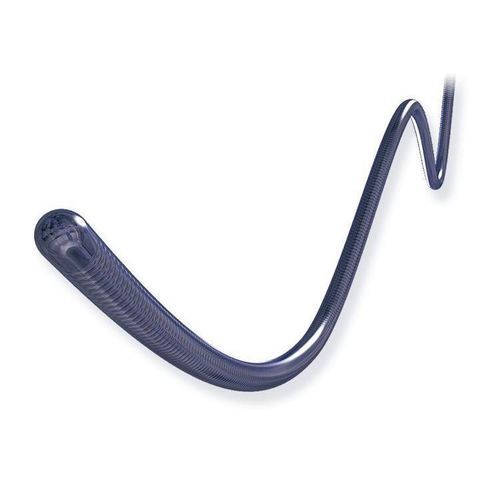

Catheter guidewire Meister 16

peripheralhydrophilic

Product overview
Torqueable, shapeable and trackable peripheral guidewire for interventional radiology. ASAHI Meister 16 is a 0.016" guidewire combining ACT ONE multi-wire coil technology, a polymer jacket for enhanced lubricity, and multiple pre-shaped tip options for peripheral access.

Features

• Torqueable: ACT ONE multi-wire coil improves torque response and wire control.
• Pre-shaped tip options: 45° angle, round curve and double angle for reliable shape retention.
• Polymer jacket: provides improved lubricity compared with spring coil guidewires.
• Available lengths: usable lengths of 165 cm and 180 cm to suit different procedural needs.

Technology (ACT ONE)
ACT ONE is ASAHI's multi-wire coil technology that optimizes torque force, torque response, durability and column strength of the wire core. The design balances maneuverability and durability for use with microcatheters in peripheral interventions.

Product Spec
Shaft Outer Diameter: 0.41 mm (0.016")
Tip Shape: 45° Angle / Round curve / Double angle
Polymer Jacket Length: 160 cm / 175 cm
Usable Length: 165 cm / 180 cm
Structure: product structure graphic (structure image available on product page)
Category:

• #Guidewire
• #0.016"

Order Information (selected variants)
ASAHI Meister — Catalog No.: WAMS-165-1645 | Usable Length: 165 cm | Shaft (O.D): 0.41 mm (0.016") | Radiopaque Length: 5 cm | Polymer Jacket Length: 160 cm | Hydrophilic Coating Length: 160 cm | Tip Shape: 45° Angle
ASAHI Meister — Catalog No.: WAMS-180-1645 | Usable Length: 180 cm | Shaft (O.D): 0.41 mm (0.016") | Radiopaque Length: 5 cm | Polymer Jacket Length: 175 cm | Hydrophilic Coating Length: 175 cm | Tip Shape: 45° Angle
ASAHI Meister — Catalog No.: WAMS-165-16WA | Usable Length: 165 cm | Shaft (O.D): 0.41 mm (0.016") | Radiopaque Length: 5 cm | Polymer Jacket Length: 160 cm | Hydrophilic Coating Length: 160 cm | Tip Shape: Double angle
ASAHI Meister — Catalog No.: WAMS-180-16WA | Usable Length: 180 cm | Shaft (O.D): 0.41 mm (0.016") | Radiopaque Length: 5 cm | Polymer Jacket Length: 175 cm | Hydrophilic Coating Length: 175 cm | Tip Shape: Double angle
ASAHI Meister — Catalog No.: WAMS-165-16ST | Usable Length: 165 cm | Shaft (O.D): 0.41 mm (0.016") | Radiopaque Length: 5 cm | Polymer Jacket Length: 160 cm | Hydrophilic Coating Length: 160 cm | Tip Shape: Round curve
ASAHI Meister — Catalog No.: WAMS-180-16ST | Usable Length: 180 cm | Shaft (O.D): 0.41 mm (0.016") | Radiopaque Length: 5 cm | Polymer Jacket Length: 175 cm | Hydrophilic Coating Length: 175 cm | Tip Shape: Round curve

Technical specifications

• Shaft Outer Diameter: 0.41 mm (0.016").
• Tip Shape options: 45° Angle, Round curve, Double angle.
• Polymer Jacket Length options: 160 cm, 175 cm.
• Usable Length options: 165 cm, 180 cm.
• Radiopaque Length: 5 cm.
• Hydrophilic Coating Length: 160 cm or 175 cm depending on variant.
• Key technologies: ACT ONE multi-wire coil for torqueability and durability; polymer jacket for improved lubricity; pre-shaped tip for shape retention.
• Available catalog numbers / variants: WAMS-165-1645, WAMS-180-1645, WAMS-165-16WA, WAMS-180-16WA, WAMS-165-16ST, WAMS-180-16ST.
