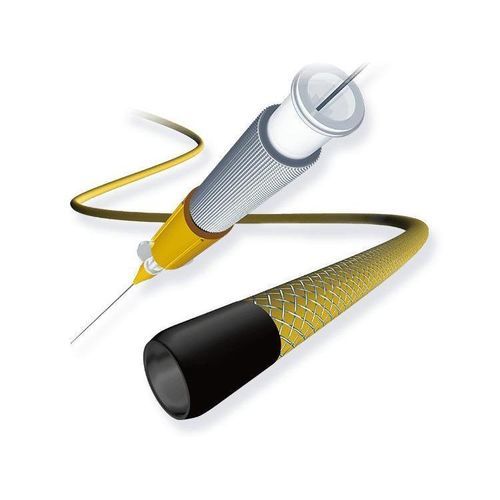

Access microcatheter Masters PARKWAY HF

blood vesselhydrophilichuman

Product
Microcatheter designed for endovascular access and selective delivery during diagnostic and interventional procedures. Available in three usable lengths with a straight tip and hydrophilic coating options.

Brand
ASAHI INTECC

Category
Microcatheter

Key specifications

• O.D. (Distal/Proximal): 0.88/0.93 mm (2.6/2.8Fr)
• I.D. (Distal/Proximal): 0.66/0.69 mm (0.026/0.027 in)
• Tip shape: Straight
• Max. guide wire: 0.53 mm (0.021 in)
• Usable length options: 105 cm, 125 cm, 150 cm
• Coating length: 65 cm (105/125 cm items) or 100 cm (150 cm item)
• Dead space volume: 0.58 ml (105 cm), 0.65 ml (125 cm), 0.75 ml (150 cm)
• Flow rates (company test at 6895 kPa / 1000 psi): see ordering table below

Ordering information
Catalog No.: WMST105-27HF — Usable Length: 105 cm — O.D.: 0.88/0.93 mm — I.D.: 0.66/0.69 mm — Max. GW: 0.53 mm — Coating Length: 65 cm — Tip Shape: Straight — Dead Space Volume: 0.58 ml — Flow rate (① iodine 300 mg/ml): 5.1 ml/s — Flow rate (② iodine 370 mg/ml): 2.7 ml/s
Catalog No.: WMST125-27HF — Usable Length: 125 cm — O.D.: 0.88/0.93 mm — I.D.: 0.66/0.69 mm — Max. GW: 0.53 mm — Coating Length: 65 cm — Tip Shape: Straight — Dead Space Volume: 0.65 ml — Flow rate (① iodine 300 mg/ml): 4.4 ml/s — Flow rate (② iodine 370 mg/ml): 2.4 ml/s
Catalog No.: WMST150-27HF — Usable Length: 150 cm — O.D.: 0.88/0.93 mm — I.D.: 0.66/0.69 mm — Max. GW: 0.53 mm — Coating Length: 100 cm — Tip Shape: Straight — Dead Space Volume: 0.75 ml — Flow rate (① iodine 300 mg/ml): 3.8 ml/s — Flow rate (② iodine 370 mg/ml): 2.0 ml/s

Notes
All performance data above were obtained under the manufacturer's standardized test conditions and may differ from other industry tests. Actual flow rates depend on contrast viscosity and clinical setup. Dead space volume measured with connected medical equipment.

Technical specifications

• Category: Microcatheter
• O.D. (Distal/Proximal): 0.88/0.93 mm (2.6/2.8Fr)
• I.D. (Distal/Proximal): 0.66/0.69 mm (0.026/0.027 in)
• Tip shape: Straight
• Max. Guide Wire (GW): 0.53 mm (0.021 in)
• Usable Length options: 105 cm, 125 cm, 150 cm
• Coating Lengths: 65 cm (for 105/125 cm) or 100 cm (for 150 cm)
• Dead space volumes and flow rates: see per-catalog entry
