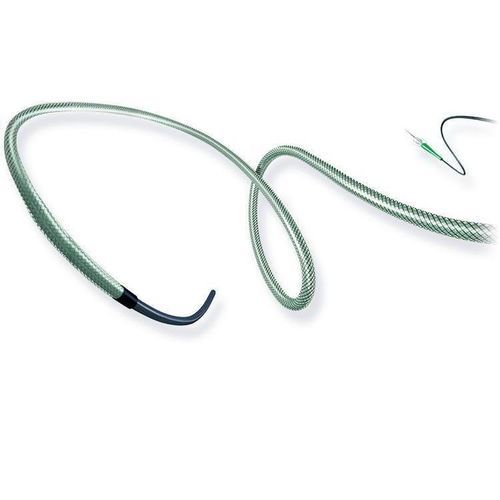

Embolization coil delivery microcatheter Veloute

neurovascularatraumatic tiphuman

Key features

• Smooth tapered edge processing for a soft, flexible tip to facilitate atraumatic navigation.
• Shaft braiding: unique composite braid with two wires of different thickness provides resistance to kinking, enhanced shaft rigidity and a larger lumen for delivery of various embolic materials.
• Stable tip behavior to reduce kick-back and prevent bouncing out of the target anatomy during device delivery.
• Controlled pushability for precise, super-selective microcatheter positioning.

Flow Rate
Setting parameters: Temperature of contrast medium: 37℃; Linear rise time: 0.3 s
Flow rate (example): Iodine 300 mg/ml — 6.0 ml/s; Iodine 370 mg/ml — 3.0 ml/s; Volume: 10 ml
The actual flow rate may be lower than the example due to variations in contrast viscosity and clinical conditions. Dead space volume is measured with the intended medical equipment connected.

Product Spec

• O.D. (Distal/Proximal): 0.58 / 0.94 mm (1.7 / 2.8 Fr)
• I.D. (Distal/Proximal): 0.43 / 0.59 mm (0.017 / 0.023")
• Tip shape: Straight / Angle
• Max. guidewire: 0.41 mm (0.016")
• Usable lengths: 105 cm, 125 cm, 150 cm
• Structure: unique composite braid (see product images)
• Category: #Microcatheter

Order Information
ASAHI Veloute — Catalog No.: VEL105-16Y — Usable Length: 105 cm — O.D.: 0.58/0.94 mm (1.7/2.8 Fr) — I.D.: 0.43/0.59 mm (0.017/0.023") — Max. GW: 0.41 mm (0.016") — Coating Length: 65 cm — Tip Shape: Straight — Max. Pressure (distal open): 6895 kPa (1000 psi) — Accessory: Y-connector set
ASAHI Veloute — Catalog No.: VEL105-16AY — Usable Length: 105 cm — O.D.: 0.58/0.94 mm — I.D.: 0.43/0.59 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Angle — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
ASAHI Veloute — Catalog No.: VEL125-16Y — Usable Length: 125 cm — O.D.: 0.58/0.94 mm — I.D.: 0.43/0.59 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Straight — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
ASAHI Veloute — Catalog No.: VEL125-16AY — Usable Length: 125 cm — O.D.: 0.58/0.94 mm — I.D.: 0.43/0.59 mm — Max. GW: 0.41 mm — Coating Length: 65 cm — Tip Shape: Angle — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
ASAHI Veloute — Catalog No.: VEL150-16Y — Usable Length: 150 cm — O.D.: 0.58/0.94 mm — I.D.: 0.43/0.59 mm — Max. GW: 0.41 mm — Coating Length: 100 cm — Tip Shape: Straight — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set
ASAHI Veloute — Catalog No.: VEL150-16AY — Usable Length: 150 cm — O.D.: 0.58/0.94 mm — I.D.: 0.43/0.59 mm — Max. GW: 0.41 mm — Coating Length: 100 cm — Tip Shape: Angle — Max. Pressure: 6895 kPa (1000 psi) — Accessory: Y-connector set

Technical specifications

• Outer diameter (distal/proximal): 0.58 / 0.94 mm (1.7 / 2.8 Fr)
• Inner diameter (distal/proximal): 0.43 / 0.59 mm (0.017 / 0.023")
• Maximum guidewire: 0.41 mm (0.016")
• Tip shapes available: Straight and Angle
• Usable lengths available: 105 cm, 125 cm, 150 cm
• Coating length: typically 65 cm (100 cm for 150 cm usable length variants)
• Max. pressure when distal end open: 6895 kPa (1000 psi)
• Accessories: Y-connector set included with catalog variants
