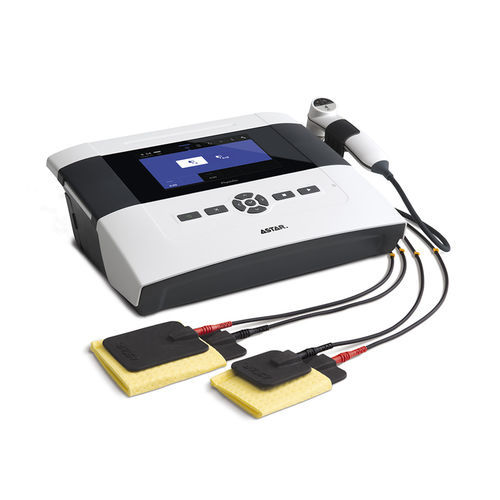

Pressure therapy unit PhysioGo 301A

tabletopTENSRussian

Overview
The PhysioGo 301A is a medical device for physiotherapy combining electrotherapy, ultrasound therapy and combined therapy in one unit. It supports up to three independent therapeutic channels, a library of 204 preset programs and battery operation (Li‑ion 2250 mAh or 3400 mAh options).

Benefits for the patient

• Comprehensive treatment options: electrotherapy, ultrasound and combined protocols adapted to musculoskeletal, nervous and soft tissue conditions.
• Electrotherapy modes: uni‑ and bipolar currents, microcurrents, Kotz (Russian) stimulation, multiple TENS modes (symmetric, asymmetric, alternating, burst), currents for spastic paralysis, diadynamic currents (MF, DF, CP, CP‑ISO, LP), impulse currents (rectangular, triangular, Trabert), tonolysis, galvanic and others.
• Ultrasound therapy: selectable frequencies at 1 MHz (deep tissues) and 3.5 MHz (superficial tissues).
• Combined therapy: simultaneous electrotherapy and ultrasound for synergistic effects.

Safe physical therapy
The device performs startup self‑tests for functional monitoring. Ultrasound head contact is monitored during procedures to ensure correct dosing and effective application. Electrode wear/consumption can be checked for electrotherapy safety.

Electrodiagnostics
Provides semi‑automatic neuromuscular electrodiagnostics (I/t curve). After testing the device displays rheobase and chronaxie values, presents accommodation factor and quotient graphically on the 7" color touch display with interpretive comments and a visual assessment scale.

Benefits for the physiotherapist

• Manual and program modes: manual mode for experienced users to set parameters directly.
• Database of 204 built‑in programs with an encyclopaedia describing treatment methodology and illustrations.
• 38 preset treatment sequences combining current types; ability to save up to 150 user programs and 10 user sequences; favourites list supported.
• Three independent channels for simultaneous treatment of multiple body areas.
• Compact design and dedicated transport bag for safe mobility; battery versions enable home‑care use up to ~5.5 hours depending on battery capacity.

Features

• Product code: A-UC-AST-PHG301A
• Color touch display: 7"
• Independent treatment channels: 3
• Intensity control per patient circuit for channels separately or simultaneously
• Electrode test function
• Manual and program operation modes
• Disease entities selectable by name or medical field
• Preset programs and sequences with user program/sequence creation
• Encyclopaedia describing treatment methodology
• Treatment statistics and adjustable buzzer volume
• Battery: Li‑ion (2250 mAh or 3400 mAh depending on version)

Electrotherapy (capabilities and methods)

• Operates in CC (current stabilization) or CV (voltage stabilization) modes with full galvanic isolation between channels.
• Supported methods include: interferential (isoplanar, dynamic, single channel AMF), TENS variants, TENS for spastic therapy, Kotz (Russian) current, tonolysis, diadynamic (MF, DF, CP, CP‑ISO, LP), pulsed rectangular and triangular, Trabert pulsed UR, Leduc pulsed, neofaradic pulsed, unipolar sine surge, galvanic, microcurrents.

Preset treatment programs and sequences

• Preset program examples: electrotherapy 69; ultrasound therapy 58; combined therapy 77.
• User memory: electrotherapy 50; ultrasound 50; combined 50.
• Favorites supported; preset electrotherapy sequences: 38; user sequences: 10.

Electrotherapy technical parameters

• Maximum current intensity (patient circuit, CC mode): galvanic 40 mA; unipolar diadynamic/impulse/tonolysis 60 mA; interferential/Kotz/bipolar 100 mA; TENS and SP‑TENS 140 mA; microcurrents 1000 µA.
• Maximum voltage amplitude (patient circuit, CV mode): interferential/Kotz/pulse/unipolar sine surge/tonolysis 100 V; TENS and SP‑TENS 140 V.
• Treatment timer (electrotherapy): 30 s – 60 min.

Ultrasound therapy technical parameters

• Operating frequencies: 1 MHz and 3.5 MHz.
• Effective radiation area (ERA): 1 cm² and 4 cm².
• Maximum ultrasound intensity: 2 / 3 W/cm².
• Pulse mode frequencies: 16 Hz, 48 Hz, 100 Hz; duty factor 5 – 75 %, step 5%.
• Continuous or pulsed emission supported.
• Ultrasound head contact control and head sensitivity calibration available.
• Treatment timer (ultrasound): 30 s – 30 min.

Combined therapy
Supports operation in CC or CV modes and combined variants of electrotherapy methods synchronized with ultrasound emission for simultaneous application.

General technical parameters

• Dimensions: 34 x 28 x 11–16 cm.
• Weight: 6 kg.
• Battery type: Li‑ion; capacity options: 2250 mAh or 3400 mAh.
• Power supply: 230 V, 50/60 Hz.

Included documentation
Technical documentation includes channels and accessory connection card (applicator card) and a product PDF.

Specifications / technical data

• Product code: A-UC-AST-PHG301A
• Display: 7" color touch panel
• Treatment channels: 3 independent
• Built‑in preset programs: 204; preset sequences: 38
• User memory: up to 150 user programs, 10 user sequences
• Electrotherapy max currents: galvanic 40 mA; unipolar diadynamic/impulse/tonolysis 60 mA; interferential/Kotz/bipolar 100 mA; TENS 140 mA; microcurrents 1000 µA
• Ultrasound: 1 & 3.5 MHz; ERA: 1 cm² and 4 cm²; max intensity: 2/3 W/cm²
• Battery: Li‑ion (2250 mAh or 3400 mAh); battery versions up to ~5.5 hours operation
• Dimensions: 34 x 28 x 11–16 cm; Weight: 6 kg; Power: 230 V, 50/60 Hz
