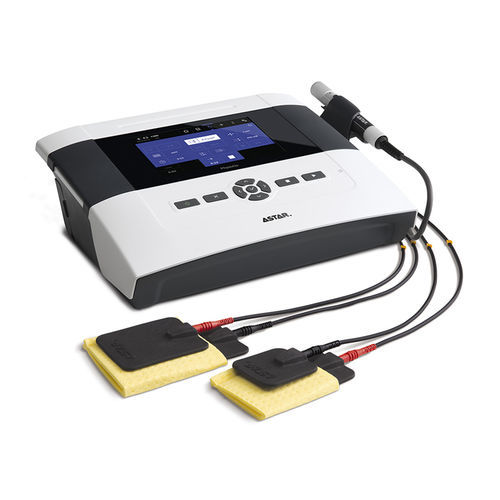

Electrical stimulation unit PhysioGo 501I

magnetic therapy unitlow level laser therapy unittransportable

Overview
The PhysioGo 501I is a modern, ergonomic multi‑therapy device for professional physiotherapy centres and mobile practitioners. It enables two‑channel electrotherapy, low‑level laser (biostimulation) therapy and magnetotherapy. The device is available with a built‑in Li‑ion battery (2250 mAh) for portable operation.

Key benefits

• Safe physical therapy: Autotest procedure for continuous device/applicator checks and a laser radiation power test function; electrode self‑test.
• Many treatment methods: simultaneous use of two independent treatment channels; supports a wide range of electrotherapy currents (TENS, Kotz, tonolysis, microcurrents, diadynamic, galvanic, etc.) and magnetotherapy; full compatibility with ASTAR laser applicators (spot probes, shower applicator, scanning applicator).
• Predefined treatment programs and user flexibility: built‑in treatment encyclopedia, 285 built‑in programs, 38 saved electrotherapy sequences, ability to create and save user programs and sequences, favorite programs function.
• Portability: compact and lightweight (approx. 6 kg) with a transport bag; battery operation allows mobile use (PhysioGo 501I: up to 5.5 hours operation stated).
• High quality and ergonomic design consistent with PhysioGo family reliability.

Therapies supported

• Electrotherapy: CC/CV operation modes, wide set of currents and stimulation waveforms, full galvanic isolation between channels, electrode test and intensity regulation per channel.
• Laser therapy: supports scanning laser, cluster laser and point probes; continuous and pulsed emission modes; automatic laser radiation power test and automatic time calculation relative to dose, power, duty factor and treatment area.
• Magnetotherapy: continuous and pulse emission; CPE plate applicator support with velcro fastening; maximum magnetic field induction up to 10 mT.

Preset programs and sequences

• Electrotherapy preset programs: 69
• IR point probe programs: 39
• R point probe programs: 18
• Nogier frequency programs: 8
• Voll frequency programs: 30
• Preset sequences for scanning laser applicators: 26
• Cluster laser applicator programs: 54
• Magnetotherapy preset programs: 41
• User‑defined programs: up to 50 (electrotherapy), 50 per laser applicator (biostimulation), 50 (magnetotherapy)
• Preset treatment sequences for electrotherapy: 38; user‑defined sequences: 10

Included functions and conveniences

• 7" colour touch display
• Autotest of applicators and automatic laser power test
• Possibility to measure I/t curve
• Treatment statistics, buzzer volume regulation, favourite programs and program name/user sequence editing
• Compatibility with optical fiber applicators for laserpuncture and ENT applications; pilot beam for application site indication

Product code
A-UC-AST-PHG501I

Caractéristiques / spécifications techniques

• Display: 7" colour touch panel
• Independent treatment channels: 2
• Battery type / capacity: Li‑ion, 2250 mAh (also listed 3400 mAh option)
• Device weight: 6 kg
• Dimensions: 34 x 28 x 11-16 cm
• Power supply: 230 V, 50/60 Hz
• Electrotherapy max. current (CC mode): galvanic 40 mA; diadynamic/impulse/tonolysis unipolar 60 mA; interferential/Kotz/unipolar sine surge/tonolysis bipolar/trigger 100 mA; TENS / SP‑TENS 140 mA; microcurrents up to 1000 µA
• Electrotherapy max. voltage (CV mode): interferential/Kotz/pulse/unipolar sine surge/tonolysis 100 V; TENS / SP‑TENS 140 V
• Electrotherapy treatment timer: 30 s – 60 minutes
• Magnetotherapy: max magnetic field induction 10 mT; operating frequency 2 – 120 Hz; interval pulse parameters pulse 1 s / break 0.5 – 8 s; treatment timer 30 s – 30 minutes
• Laser device class: 3B
• Biostimulation laser point probes: red 660 nm, max power 80 mW; infrared 808 nm, max power 400 mW; power regulation 25%/50%/75%/100%
• Scanning laser applicator: wavelengths 808 & 660 nm; max powers 450 & 100 mW; power regulation 50%/100%; pulse freq. 1 – 5000 Hz; duty factor for scanning applicator pulse mode 75%
• Cluster laser applicator: 4x 808 nm (400 mW each) & 5x 660 nm (40 mW each); power regulation 50%/100%; pulse freq. 1 – 5000 Hz; duty factor 10 – 90% (pulse 50 µs)
