Ultrasound diathermy unit PhysioGo 600C

laser therapy unitlow level laser therapy unittransportable

Overview

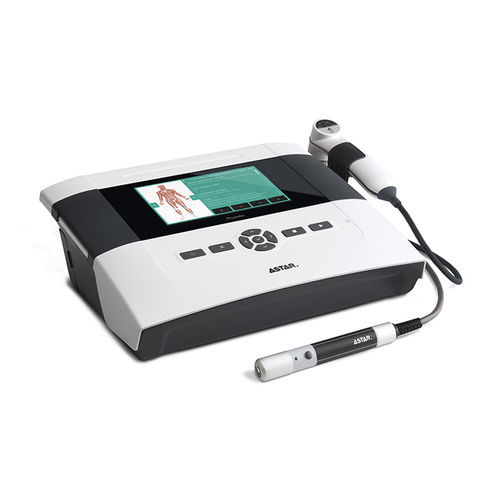

PhysioGo 600C combines ultrasound and laser biostimulation in one compact unit to support rehabilitation, pain management and treatment of musculoskeletal and rheumatic conditions. The device is designed for clinical and portable use and supports two fully independent treatment channels.

Benefits for the patient
Ultrasound therapy
Provides ultrasound heads operating at 3.5 MHz for superficial tissues and tendons and 1 MHz for deeper muscles and joints. Modes include continuous (thermal) and pulsed emission (micro-massage). Emitted power and effective treatment time are monitored and controlled automatically. Ultrasound heads available with effective radiation areas of 1 cm² and 4 cm².

Laser therapy
Supports point probes, cluster applicators and scanning applicators at 660 nm and 808 nm. Point probes can be used with optical fibre applicators. Emission modes include continuous and pulsed operation; time and dose calculations are automated.

Therapy at the patient’s home
Compact and transportable design. A transport bag is available. Related model PhysioGo 601C includes an optional battery allowing up to 5.5 hours of operation for use in locations with limited mains access.

Benefits for the therapist

• 7" colour touch display with simplified operation.
• 233 built-in treatment programs, including Voll and Nogier acupuncture sets.
• Create favourites and save up to 250 user programs with custom names.
• Two independent channels for simultaneous treatment of different indications.

Safety
Automatic software monitoring and startup self-test display connected accessories. Sonotherapy mode monitors ultrasound emission and head contact (effective treatment time). Device versions comply with EU Regulation 2017/745 (MDR).

Treatment encyclopedia
Built-in treatment encyclopedia accessible on the device, describing treatment methodology for specific conditions with filtering by medical field.

Files and documentation available
Downloadable applicator and accessory documentation and product datasheet (PDFs available from the manufacturer).

Technical specifications

• Product code: A-UC-AST-PHG600C
• Model: PhysioGo 600C
• Brand: Astar
• Colour touch display: 7"
• Independent treatment channels: 2
• Operation modes: manual and program
• Preset treatment programs database; ability to create user programs
• User program capacity: up to 50 ultrasound programs; up to 50 biostimulation laser programs per applicator
• Ultrasound: IPX7 water-resistant heads; continuous and pulsed emission; contact control; frequencies 1 MHz & 3.5 MHz; effective radiation areas 1 cm² and 4 cm²; max intensity 2/3 W/cm²; pulse frequencies 16, 48, 100 Hz; duty factor 5–75% (step 5%); timer 30 s – 30 min
• Laser: supports scanning, cluster and point applicators; wavelengths 660 nm & 808 nm; pilot beam for positioning; class 3B device; timer 1 s – 100 min
• Biostimulation probes: red 660 nm (max 80 mW); IR 808 nm (max 400 mW); power regulation 25/50/75/100%; pulse frequency 1–5000 Hz; pulse duty 10–90%
• Scanning applicator: 808 & 660 nm; max power 450 & 100 mW
• Cluster applicator: 4×808 nm & 5×660 nm configurations (see manufacturer data for powers)
• Preset program counts: ultrasound 58; IR point probes 39; R point probes 18; Nogier 8; Voll 30; scanning sequences 26; cluster programs 54
• Dimensions: 34 × 28 × 11–16 cm; Weight: 6 kg
• Power supply: 230 V, 50/60 Hz; battery option available (PhysioGo 601C)
