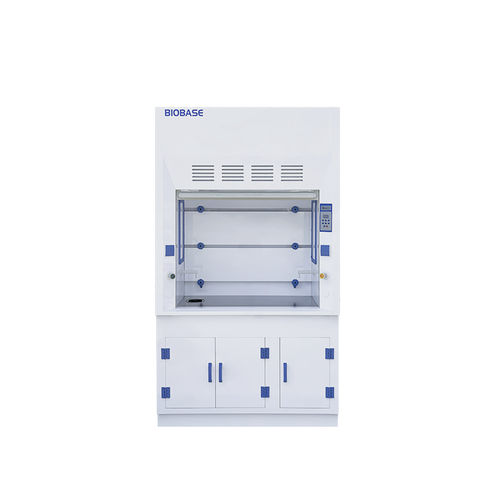

Chemical fume hood FH(P)

exhaustcontainmentlaboratory

Introduction
The FH(P) series is a ducted polypropylene (PP) fume hood designed for conditioned and clean workshops. It is suitable for handling corrosive, volatile or potentially infectious substances and protects both operator and samples during laboratory operations.

Applications

• Electronics, chemical processing, machinery workshops
• Universities, research laboratories, QC and R&D facilities
• Any environment requiring corrosion-resistant local exhaust for hazardous reagents

Key features

• Porcelain‑white PP main body (8 mm) offering resistance to strong acids, alkalis and corrosion
• Front sash: 5 mm toughened (tempered) glass, manual height adjustment for visibility and access
• Built‑in PP centrifugal blower(s) with adjustable speed (FH1800(P) equipped with 2 blowers)
• Microprocessor control with LED display and memory function for power‑failure recovery
• Anti‑corrosive PP water and gas taps; chemical‑resistant work surface (phenolic resin standard)
• LED lighting (model dependent) and face velocity control (0.3–0.8 m/s)

Technical parameters
Model: FH1000(P) | FH1200(P) | FH1500(P) | FH1800(P)
External size (W*D*H): 1047*800*2450 mm | 1247*800*2450 mm | 1547*800*2450 mm | 1847*800*2450 mm
Internal size (W*D*H): 787*560*700 mm | 987*560*700 mm | 1287*560*700 mm | 1587*560*700 mm
Work surface height: 820 mm (all models)
Max opening (sash): 740 mm (all models)
Air velocity (face): 0.3–0.8 m/s (all models)
Noise level: ≤68 dB (all models)
Exhaust duct: 4.3 m, φ250 mm (standard; FH1800(P) supplied with two 4.3 m ducts)
LED lamp: 9W*2 | 12W*2 | 15W*2 | 20W*2 (by model)
Blower: Built‑in PP centrifugal blower (2 blowers for FH1800(P)), speed adjustable
Front window: 5 mm toughened glass, acid/alkali resistant, manual height adjustable
Power supply: AC220V±10% 50/60Hz or 110V±10% 60Hz
Power consumption: 400W | 400W | 500W | 700W
Main body material: Porcelain‑white polypropylene (PP), 8 mm thick
Work table: Chemical‑resistant phenolic resin (standard); optional PP, epoxy or ceramic surfaces
Gross weight (main body): 137 kg | 155 kg | 180 kg | 206 kg
Package size (main body W*D*H): 1188*938*1612 mm | 1388*938*1612 mm | 1688*938*1612 mm | 1988*938*1612 mm

Standard accessories

• LED light
• Chemical‑resistant phenolic work table
• 4.3 m PVC exhaust duct (2 pcs for FH1800(P)), diameter 250 mm
• Pipe straps, RVV power cord (3*1.0 mm²*3000 mm)
• Base cabinet, waterproof sockets *2, tail insert
• PP water tap and PP gas tap, water sink
• PP centrifugal blower*1 (2 for FH1800(P))

Optional accessories & ordering

• PP work table, epoxy resin board or ceramic board
• Active carbon filter
• External PP centrifugal blower (recommended for duct length >4 m; 2 units for FH1800(P) if needed)
• Splicable base cabinet (not available for FH1800(P))
• Brand: BIOBASE; Product origin: CHINA; Delivery time: Within 7 days; Factory direct supply; Models available: FH1000(P), FH1200(P), FH1500(P), FH1800(P)
