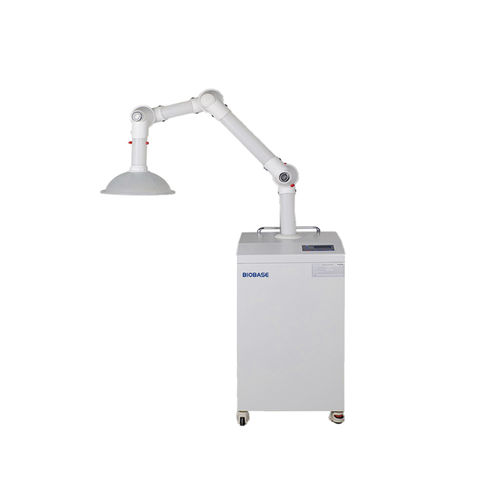

Mobile air purification system MFE-I

portableactivated carbonwith HEPA filter

Introduction
The mobile fume extractor is a purification unit that provides a locally high-purity environment. The airflow is vertical laminar. It is widely used in medical research laboratories, precision instrument environments and microorganism studies.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: MFE-I

Features

• Mobile unit on casters for free movement; easy to operate and install.
• Purification system composed of fan, primary (pre) filter, high-efficiency (HEPA) filter and activated carbon filter.
• HEPA filter provides 99.995% efficiency at 0.3 μm for effective particulate capture.

Technical parameters
Model: MFE-I
External size (W×D×H): 500 × 500 × 980 mm
Air velocity: 0.3–0.5 m/s
Filter efficiency: 99.995% at 0.3 μm (HEPA)
Noise: ≤75 dB(A)
Suction inlet diameter: 375 mm
Rated power: 180 W
Rated supply: AC 110 V/220 V ±10%, 50/60 Hz
Gross weight: 76 kg (15 kg extracting arm, 61 kg purification system)
Net weight: 67 kg
Package size (W×D×H): 810 × 510 × 600 mm (extracting arm); 630 × 630 × 1175 mm (purification system)

Specifications

• Model: MFE-I
• External size: 500 × 500 × 980 mm
• Air velocity: 0.3–0.5 m/s
• Filter efficiency: 99.995% @ 0.3 μm (HEPA)
• Noise: ≤75 dB(A)
• Suction inlet diameter: 375 mm
• Rated power: 180 W
• Rated supply: AC 110 V/220 V ±10%, 50/60 Hz
• Gross weight: 76 kg; Net weight: 67 kg
• Package sizes: 810×510×600 mm (extracting arm); 630×630×1175 mm (purification system)
