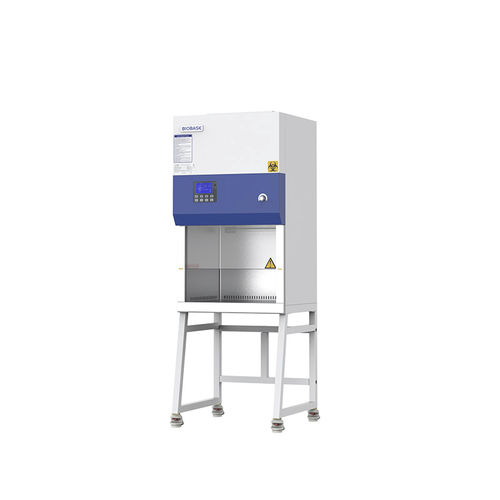

Type A2 microbiological safety cabinet 11231 BBC 86

clinicalfor biomedical researchfor research and development

Introduction: This Class II A2 biological safety cabinet is designed for laboratory applications including microbiology, biomedical research, recombinant DNA work, animal experiments and handling of biological products. It provides a controlled, particle‑free work environment to protect the operator, product and environment in clinical and research settings.

Key information:

• Brand: BIOBASE
• Model: 11231 BBC 86
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply: Factory direct

Features:

• Compact footprint to save laboratory space.
• Centrifugal fan with adjustable speed; H14 HEPA / ULPA filtration (two filters) with life indicators.
• Motorized front window for one‑hand operation and controlled access.
• Audio‑visual alarms for abnormal airflow velocity, filter replacement, window over‑height and high filter pressure.
• Time reserve function: programmable 30‑minute delay for startup/sterilization sequences.
• Remote control: full function control up to 6 m for emergency operation.
• Large LCD display showing inflow/downflow velocity, work area temperature and humidity, filter pressure, UV and filter operating time, filter life indicator.
• Memory function to retain settings in case of power failure.
• Interlock functions between UV lamp, front window, blower and LED lamp to ensure safe operation.

Accessories:

• Standard: LED lamp ×2, UV lamp ×2, Remote control, Waterproof sockets ×2
• Optional: Stainless steel water tap ×1, Stainless steel gas tap ×1, Base stand

Technical specifications:

• Model: 11231 BBC 86
• External size (W×D×H): 700×640×1230 mm (without base stand)
• Internal size (W×D×H): 600×500×530 mm
• Tested opening (safety height): 200 mm (8")
• Max opening: 370 mm (15")
• Inflow velocity: 0.53 ± 0.025 m/s
• Downflow velocity: 0.33 ± 0.025 m/s
• ULPA/HEPA filters: Two, 99.9995% efficiency at 0.12 μm; filter life indicator
• Front window: Double‑sided laminated glass, motorized
• Noise: ≤67 dB
• UV lamp: 15 W ×1; UV timer and life indicator; emission 253.7 nm
• LED lamp: 8 W ×2; Illumination ≥1000 Lux
• Power consumption: 500 W
• Sockets: Two (total load 500 W)
• Display: LCD
• Control system: Microprocessor
• Airflow system: 70% recirculation, 30% exhaust
• Alarms: Filter replacement, window over height, abnormal airflow velocity, high filter pressure
• Materials: Work zone — 304 stainless steel; Main body — cold‑rolled steel with antibacterial powder coating
• Work surface height: 750 mm (with optional base stand)
• Power supply: AC 220V ±10% 50/60Hz; 110V ±10% 60Hz
• Packing size (without base): Carton 810×760×1430 mm; Wood 850×810×1430 mm
• Gross weight (without base): Carton 120 kg; Wood 140 kg
• Packing size (with base): Carton 860×810×1430 mm; Wood 970×850×1430 mm
• Gross weight (with base): Carton 139 kg; Wood 162 kg
