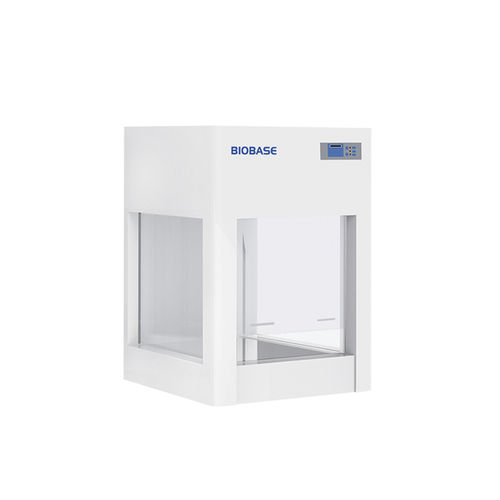

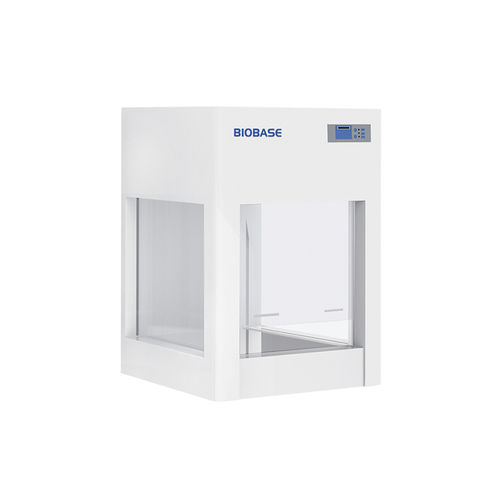

Healthcare facility clean bench BYKG-V series

for hospitalslaboratoryfor the pharmaceutical industry

Overview
The compounding hood is a benchtop clean-air device designed to provide a controlled, particle‑free environment for sterile preparation of compounds. It protects both operator and product and supports contamination control in hospitals, pharmacies and laboratories. Models include BBS‑V500, BBS‑V600, BBS‑V700 and BYKG‑V series variants.

Product data

• Brand: BIOBASE
• Product origin: China
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models referenced: BBS-V500, BYKG-VII, BBS-V600, BYKG-VIII, BBS-V700, BYKG-IX, BYKG-X, BYKG-XII

Technical parameters
Models: BBS-V500 | BYKG-VII | BBS-V600 | BYKG-VIII | BBS-V700 | BYKG-IX | BYKG-X | BYKG-XII. External size (W×D×H) mm: 550×460×700; 600×580×1060; 700×620×1150; 1000×620×1150; 1200×620×1150. Internal size (W×D×H) mm: 480×340×370; 580×520×610; 640×550×700; 940×550×700; 1140×550×700. Display: LED or LCD (model dependent). Airflow velocity: typically 0.3–0.8 m/s depending on model. Body: cold‑rolled steel with antibacterial powder coating. Work surface: 304 stainless steel or solid physicochemical steel plate (model dependent). Pre‑filter: washable polyester fiber (BBS‑V500/600/700). Filtration: HEPA standard; some models include activated carbon or HEPA+carbon combinations. Noise: ≤60 dB. Front window: manual 5 mm toughened glass (anti‑UV) or manual acrylic. Power: 100–400 W depending on model. Power supply: AC 220V±10% 50/60Hz or 110V±10% 60Hz.

Notes
Configurations (display type, filter combination, lamp counts, dimensions, power and accessories) vary by model. Refer to the model‑specific technical lines for exact configuration and available options.

Features / technical specifications

• Application: Benchtop compounding hood for sterile/particle‑controlled preparation in hospitals, pharmacies and laboratories.
• Filtration: Standard HEPA filtration; optional activated carbon or combined configurations for odor control.
• Airflow: Designed to provide controlled airflow rates (typ. 0.3–0.8 m/s) per model for product/operator protection.
• Construction: Cold‑rolled steel body with antibacterial powder coating; work surface in 304 stainless steel or solid physicochemical steel plate.
• Lighting & disinfection: Integrated LED lamp(s) and UV lamp(s) (emission 253.7 nm) depending on model.
• Noise level: ≤60 dB.
• Accessories: Standard HEPA filter, LED lamp, UV lamp(s); optional base stand, additional UV lamps; larger models may include PVC exhaust duct (Ø250 mm).
• Sizes & weights: Multiple external/internal sizes and gross/package weights per model (see technical parameters).
