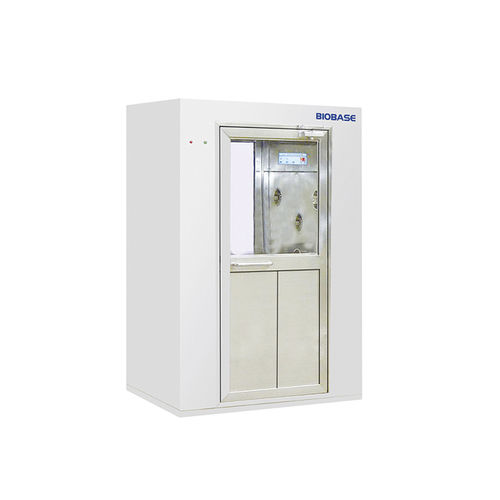

Compact air purification system AS series

with HEPA filterfor cleanroomshigh-performance

Product overview
The air shower provides a controlled passage for personnel entering cleanrooms, removing particulate contamination by high‑speed clean air to maintain required workplace cleanliness levels.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: AS-1P1S, AS-1P2S, AS-2P2S

Features

• Photoelectric sensor for automatic air blow cycles.
• Circulation air design to preserve shower area cleanliness when idle.
• Electric interlock double doors to prevent cross-contamination.
• Adjustable blow time via LED display (0–99 s).
• HEPA filtration providing Class 100 cleanliness.

Technical Parameters
Model — AS-1P1S — AS-1P2S — AS-2P2S
External Size (W*D*H) — 1300*1000*2050 mm — 1500*1000*2050 mm — 1500*2000*2050 mm
Shower Area Size (W*D*H) — 800*900*1930 mm — 800*900*1930 mm — 800*1900*1930 mm
HEPA Filter — 99.995% efficiency at 0.3 µm
Spraying Wind Speed — 25 m/s
Air Shower Time — 0–99 s (adjustable)
No. of SS Nozzles — 6 — 12 — 24
Lighting — 12W fluorescent ×1 (all models)
Power Consumption — 550 W — 1100 W — 2200 W
Cabinet Material (options) — 1. Full cold‑rolled steel with powder coating; 2. Internal stainless steel, external cold‑rolled steel; 3. Full stainless steel
Door Material (options) — Cold‑rolled steel with powder coating or stainless steel
Chassis — Stainless steel
Power Supply — AC220V±10% 50/60Hz; 110V±10% 60Hz
Net/Gross Weight and Package Size provided per model for logistics planning

Characteristics / technical specifications

• Models: AS series — AS-1P1S / AS-1P2S / AS-2P2S.
• Compact and extended shower area options to match staffing and throughput needs.
• High‑efficiency HEPA filter: 99.995% at 0.3 µm.
• Spray air velocity 25 m/s for effective particle removal.
• Adjustable cycle time with LED control (0–99 s).
• Nozzle counts: 6 / 12 / 24 depending on model.
• Multiple cabinet and door material configurations for cleanroom compatibility.
• Power variants and clear shipping weights/dimensions facilitate installation planning.
