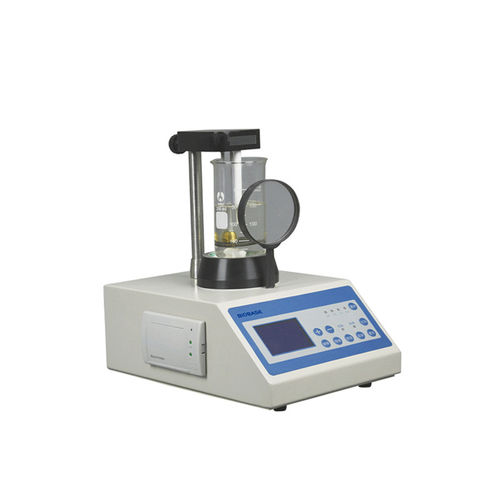

Automatic melting point instrument MPTD-1

automatedfully automatedelectronic

Product overview
The BIOBASE Melting point tester MPTD-1 uses capillary tubes and an oil-bath temperature transfer method compliant with Pharmacopoeia; suitable for determining melting points of pharmaceuticals, chemical reagents, spices and dyes.

Key features

• Thermo-sensitive mini printer for on-site records.
• Automatic magnetic stirring for uniform oil-bath temperature.
• High-precision temperature sensor with automatic non-linear error correction.
• Automated functions: automatic measurement, diagnosis and alarm.
• Full-automatic frequency-conversion control for precise temperature control and stable heating rates.

Technical parameters

• Model: MPTD-1
• Melting point test range: RT~290°C
• Heating rates: 0.5°C/min; 1.0°C/min; 1.5°C/min; 3.0°C/min
• Deviation of linear heating rate: <5%
• Temperature transfer medium: methyl silicone oil
• Liquid cup: 250 ml tall beaker
• Test precision: ≤±0.5°C (melting point <200°C); ≤±1.0°C (melting point >200°C)
• Resolution: 0.1°C
• Operating environment: 18°C~28°C
• Interface: standard serial printing interface with micro-printer
• Power supply: AC220V 50/60Hz (standard); 110V optional
• Dimensions (W*D*H): 200*320*305 mm
• Package size (W*D*H): 410*295*430 mm
• Net/Gross weight: 5 kg / 8 kg

Applications and compliance

• Designed for QC and R&D laboratories in pharmaceutical, chemical and food-additive sectors.
• Operates according to pharmacopoeia capillary method, suitable for routine melting point determination.

Ordering information
Brand: BIOBASE
Origin: CHINA
Lead time: within 7 days
Supply: factory direct
