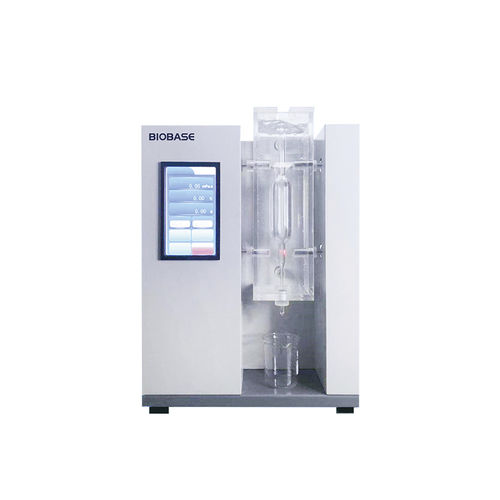

Automatic viscometer BDV-5P

laboratoryfor the food industryfor the pharmaceutical industry

Introduction
Suitable for viscosity and property testing of edible gelatin, medicinal gelatin, industrial gelatin, bone gelatin and other gelatin types, and for viscosity detection of agar, protein powder and other gelatinous liquids.

Product information

• Brand: BIOBASE
• Origin: CHINA
• Lead time: Within 7 days
• Supply capacity: Direct factory supply

Features

• High-performance embedded intelligent touch screen for simple and fast operation, precise control and a user-friendly human–machine interface.
• Supports viscosity measurement of materials with different specific gravities at various temperatures.
• Interactive time correction and intelligent temperature correction functions.
• Interactive viscosity tube parameter correction and liquid transparency selection to expand the measurable sample range.
• Supports switching the user interface between English and Chinese.
• Provides historical data query and print functions.
• Includes automatic fault detection, automatic fault repair and automatic fault alarm functions.

Technical parameters
Model: BDV-5P
Measured range (mPa·s): 0~99.99
Viscosity display resolution (mPa·s): 0.01
Precision (mPa·s): ±0.02
Time range: 0~5000 s
Time precision: ≤0.01 s
Time display resolution: millisecond
Water bath temperature range: RT~70℃
Water bath temperature setting resolution: 0.1℃
Water bath temperature precision: ±0.1℃
Water bath temperature display resolution: 0.01 ℃
Viscometer volume: 100 ml
Viscometer volume error: ±0.5 ml
Longitudinal central moment: 152 mm ± 0.5 mm
Power supply: AC220V±10%, 50Hz
Power: 500W
Package size: 465 × 370 × 610 mm
Gross weight: 16 kg

Specifications

• Model: BDV-5P
• Measurement range: 0~99.99 mPa·s
• Viscosity resolution: 0.01 mPa·s
• Viscosity accuracy: ±0.02 mPa·s
• Time range: 0~5000 s; time precision ≤0.01 s
• Water bath: RT~70℃; setting resolution 0.1℃; precision ±0.1℃; display resolution 0.01 ℃
• Sample volume: 100 ml (±0.5 ml)
• Longitudinal center moment: 152 mm ±0.5 mm
• Power: AC220V±10%, 50Hz; 500 W
• Package dimensions: 465 × 370 × 610 mm; gross weight 16 kg
