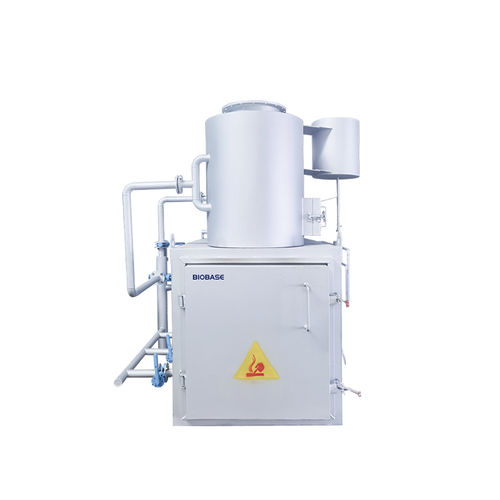

Thermal incinerator BK-HLPG-300

burnoutfor general applicationsair-operated

Introduction
The BK-HLPG-300 waste incinerator provides on-site thermal treatment for solid combustible waste using high-temperature combustion and advanced flue-gas treatment to achieve smokeless and odorless emissions.

Product details

• Brand: BIOBASE
• Model: BK-HLPG-300
• Origin: CHINA
• Lead time: within 7 days
• Supply: factory direct

Key features

• Dual combustion chambers for high thermal efficiency and improved furnace insulation.
• Integrated furnace door with zirconium-containing ceramic fiber insulation for low deformation and light weight.
• Standalone heat-isolating design with tangential reoxygenation in the secondary chamber to ensure flue-gas residence time > 2 seconds.
• Three burners with controlled burn rate for 150–300 kg operation; emissions are smokeless and odorless.

Technical parameters

• Model: BK-HLPG-300
• Chambers: Dual
• Primary chamber capacity: 200–300 kg/batch
• Primary chamber volume: 1.75 m³
• Primary chamber working temperature: 800–1000 °C
• Secondary chamber working temperature: 1050–1200 °C
• Refractory material: Mullite (≈65% Al2O3); primary inner wall: high-alumina refractory brick
• Refractory rating: 1350 °C
• Operational temperature range: 550–1350 °C
• Burners: Three (plus 2 observation-area burners)
• Burn rate: 150–300 kg
• Fuel consumption (diesel): 10–15 kg
• Flue-gas retention time: > 2 seconds
• Metal thickness: 6 mm
• Furnace door size: 760 × 960 mm
• Primary inside size (W×D×H): 1850 × 900 × 1050 mm
• Secondary chamber material: Q235B + refractory
• Secondary external size (Ø×H): Φ1000 × 1260 mm
• External overall size (W×D×H): 2650 × 2200 × 3570 mm
• Package volume: 20 m³
• Net weight / Gross weight: 8000 kg / 8500 kg
• Standard accessory: Chimney
• Optional accessory: Natural gas burner
• Power supply: AC220V, 50/60Hz (110V optional); smoke-filtered units use external transformer

Applications and compliance

• Designed for industrial and institutional on-site thermal treatment of solid combustible waste where local regulations permit.
• Meets smokeless and odorless emission performance under specified operating conditions; site-specific exhaust treatment may be required.

Ordering and support

• Factory direct supply; customization, optional accessories and installation support available on request. Contact supplier for detailed technical drawings, installation and commissioning options.
