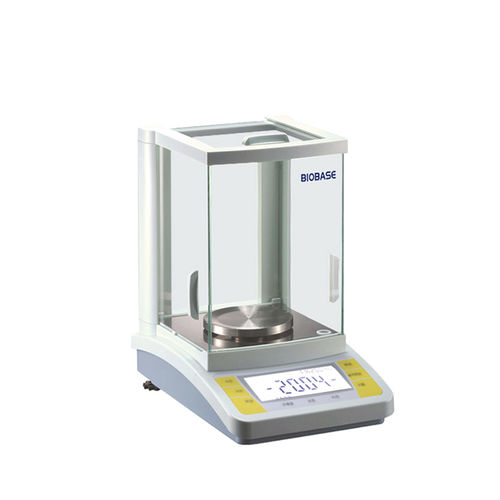

Electronic laboratory balance BA-B series

digitalanalyticalfor scientific research

Overview
The Automatic Electronic Analytical Balance BA-B Series is a precision laboratory instrument for accurate measurement of small masses in laboratory, industrial and research environments.

Basic Information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BA504B, BA604B, BA1004B, BA1104B, BA1204B, BA1604B, BA2004B, BA2104B, BA2204B, BA2104S

Features

• Five-side full-transparent windshield for draft protection and visibility
• New-generation electromagnetic weighing sensor ensuring high resolution
• Application programs including automatic fault detection, four-point linear calibration and overload protection
• Ultra-large LCD for clear and comfortable readout

Functions

• Multiple modes: counting, unit conversion (g, ct, oz, etc.), stability detection, full-range taring, zero memory
• Built-in RS232C interface for connection to PC or printer
• Built-in lower weighing hook for auxiliary weighing

Power Supply
AC 110–220 V, 50–60 Hz; power cord included, no battery

Standard Accessory

• Balance body
• Weighing pan
• Adaptor
• Standard weights
• Dust guard
• Cleaning cloth
• Tweezers
• Brush

Technical Parameters (table format)
Model: BA504B | BA604B | BA1004B | BA1104B | BA1204B | BA1604B | BA2004B | BA2104B | BA2204B | BA2104S
Capacity: 0~50g | 0~60g | 0~100g | 0~110g | 0~120g | 0~160g | 0~200g | 0~210g | 0~220g | 0~60/60~210g
Readability: 0.1 mg (BA504B–BA2204B); BA2104S: 0.1 mg/1 mg
Pan size: Φ90 mm (all models)
Stable time: BA504B, BA604B: 4s; BA1004B–BA1604B: 6s; BA2004B–BA2204B: 6–8s; BA2104S: 4s
Repeatability: BA504B–BA1604B: 0.2 mg; BA2004B–BA2204B: 0.3 mg; BA2104S: 0.2 mg/1 mg
Linearity: BA504B–BA604B: 0.2 mg; BA1004B–BA2204B: 0.3 mg; BA2104S: 0.2 mg/1 mg
Net weight: 6.8 kg (all models)
External dimensions: 350 × 215 × 340 mm (all models)
Package size: 480 × 375 × 515 mm
Gross weight: 9 kg
Workspace height: 240 mm
Calibration: External calibration (all models)

Characteristics / Technical Specifications

• Series: BA-B Series
• Measurement readability: down to 0.1 mg for most models
• Capacity range: 50 g to 220 g depending on model
• Weighing pan diameter: 90 mm
• Stabilization time: model-dependent, typically 4–8 s
• Interface: RS232C for PC/printer
• Calibration method: External calibration
• Power supply: AC 110–220 V, 50–60 Hz
• Included accessories: adaptor, standard weights, dust guard, cleaning cloth, tweezers, brush
• Net/Gross weight (packaged): approx. 6.8 kg / 9 kg
• External dimensions: 350 × 215 × 340 mm; Package dimensions: 480 × 375 × 515 mm
