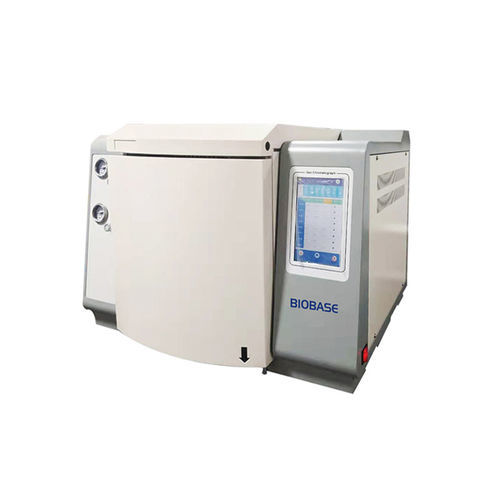

GC chromatography system BK-GC7820N

for gas analysisfor researchFID

Overview
The BK-GC7820N gas chromatograph by BIOBASE uses mechanical-valve gas routing and a high-precision pressure sensor to display gas path pressure and carrier flow in real time. Its three-chamber, large-column oven design increases expandability and supports multiple detector configurations (up to three simultaneously). Integrated chromatography processing software enables batch processing, customizable report templates and export to Excel, Word and PDF.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BK-GC7820N

Features

• 7-inch HD capacitive touchscreen with real-time display of spectra, temperature zones, carrier gas flow and detector status.
• On-screen editing of instrument methods and firmware upgrade via USB.
• One-click instrument reset and intelligent maintenance reminders for consumables (septum, liners, pads).
• Pre- and post-chromatographic channels controllable synchronously or asynchronously.
• ECM functional safety certification; enhanced EMI/EMC resistance.

Technical Parameters
Model: BK-GC7820N
Oven - Temperature Range: RT+2 ~ 450℃
Oven - Temperature Control Accuracy: 0.01℃
Oven - Temperature Program: ≥99 levels, 100 platforms (expandable)
Oven - Maximum Heating Rate: 250℃/min
Temperature Control: 8‑channel independent control with automatic over-temperature protection

Selectable Detectors (examples):
FID: Operating temp 450℃; detection limit ≤1.1 pg C/s (n‑hexadecane); dynamic range ≥10⁷; automatic ignition.
TCD: Sensitivity ≥10,000 mV·mL/mg; baseline drift (30 min) ≤0.2 mV; dynamic range ≥10⁵; gas-bridge current protection.
FPD: Max temp 450℃; detection limits P ≤80 fg/s, S ≤8 pg/s; automatic ignition.
ECD: 63Ni source; max temp 400℃; detection limit ≤1.0×10⁻¹⁴ g/mL; dynamic range ≥10⁴.
NPD: Max temp 400℃; detection limits N ≤1×10⁻¹² g(N)/s, P ≤5×10⁻¹³ g(P)/s; dynamic range ≥10³.

Sample Injection Options: split/splitless capillary (standard and inert flow path), septum‑purge packed column, cold column, PTV, valve injection, headspace, thermal desorption, autosamplers.

Accessories & Supply
Standard: FID detector, general chromatography workstation software, capillary sampler, startup toolkit.
Optional: TCD, ECD, FPD, NPD detectors, audit chromatography software, columns, nickel catalytic converter, liquid autosampler, headspace sampler.

Specifications / Key data

• Power supply: AC220V, 50/60Hz
• Product size (W×D×H): 670×580×500 mm
• Net weight: 60 kg; Gross weight: 73 kg; Packing: 840×720×750 mm
• Note: Up to 3 different detector types can be installed simultaneously.
