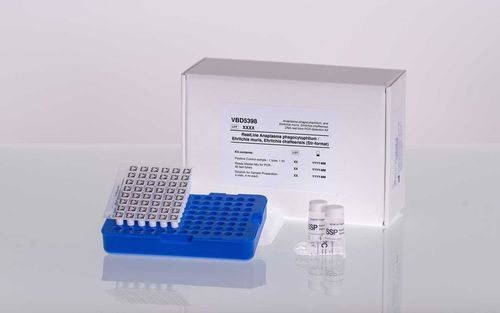

Ehrlichiosis test kit VBD5398-R

EhrlichiaAnaplasma phagocytophilumserum

Description
The RealLine Anaplasma / Ehrlichia kit is a real‑time PCR detection kit for sensitive identification of Anaplasma phagocytophilum (HEX channel) and Ehrlichia chaffeensis / Ehrlichia muris (ROX channel) in tick or human specimens. All components are lyophilized as a Ready‑Mastermix in 0.2 ml tubes. GLU – for General Lab Use.

Clinical information
Ehrlichiosis and human granulocytic anaplasmosis are tick‑borne infections caused by Anaplasma phagocytophilum, Ehrlichia chaffeensis or Ehrlichia muris. Clinical presentation ranges from mild flu‑like symptoms to severe complications such as meningoencephalitis, particularly in immunocompromised patients. Early and specific molecular detection supports diagnosis and patient management.

Sample Material

• Blood serum, plasma
• Cerebrospinal fluid (CSF)
• Tick suspension samples

Detection Channels

• FAM (495–520 nm) — Internal Control (IC)
• HEX (535–554 nm) — Anaplasma phagocytophilum
• ROX (575–602 nm) — Ehrlichia chaffeensis and Ehrlichia muris

Format
Str‑format: Ready‑Mastermix is lyophilized in 0.2 ml white tubes arranged on a plate. Cut the required number of tubes from the plate, pipette 50 µl of extracted DNA/RNA into each tube, seal with PCR foil or caps and run the assay. Tubes are regular‑profile and compatible with RealLine Cyclers, Bio‑Rad cyclers and many other platforms. Follow the IFU for device settings.

Validated Cyclers

• RealLine Cycler 48 or RealLine Cycler 96 (BIORON GmbH)
• CFX96, iQ5, iCycler (Bio‑Rad, USA)
• DTprime, DTLite (DNA‑Technology, Russia)
• Compatible with other real‑time cyclers; consult the IFU for instrument parameters

Technical specifications

• Commercial name: RealLine Anaplasma / Ehrlichia
• Brand / Manufacturer: BIORON GmbH
• Format: Str‑format (lyophilized Ready‑Mastermix in 0.2 ml tubes on a plate)
• Pack variant: 48 Tests (VBD5398‑R)
• Recommended internal control: RealLine Internal Control (REF VBC8881‑R)
• Detection channels: FAM (IC), HEX (Anaplasma phagocytophilum), ROX (Ehrlichia chaffeensis, Ehrlichia muris)
• Sample types: blood serum, plasma, cerebrospinal fluid, tick suspension samples
• All components lyophilized, ready-to-use
