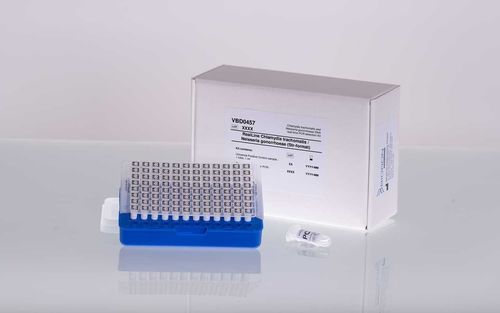

Chlamydia test kit VBD0457-R

for sexually transmitted diseasesgonorrheaChlamydia trachomatis

Short description
The RealLine Real-Time PCR kit VBD0457-R is designed for differential and sensitive detection of plasmid and genomic DNA of Chlamydia trachomatis and Neisseria gonorrhoeae in human clinical samples by real-time PCR. All assay components are supplied lyophilized as a ready-to-use master mix. Intended use: GLU – General Lab Use.

Detection channels

• FAM (495 – 520 nm) for Internal Control (IC)
• HEX (535 – 554 nm) for Chlamydia trachomatis DNA
• ROX (575 – 602 nm) for Neisseria gonorrhoeae DNA

Formats

• Str-format: Ready-mastermix is lyophilized and prepared in 0.2 ml white tubes arranged in a plate. For use, cut the required number of tubes, add 50 µl of extracted DNA/RNA per tube, seal with PCR foil or caps and run the test. Tubes are medium-profile and compatible with RealLine Cyclers, BIO-RAD cyclers and other common real-time instruments.

Validated cyclers

• RealLine Cycler 48 (BIORON GmbH)
• RealLine Cycler 96 (BIORON GmbH)
• CFX96, iQ5, iCycler (Bio-Rad, USA)
• DT96, DTLite (DNA-Technology, Russia)
• Compatible with other Real-Time cyclers (consult IFU for device settings)

Technical specifications

• Product line: RealLine
• Target organisms: Chlamydia trachomatis and Neisseria gonorrhoeae (plasmid and genomic DNA)
• Assay type: Real-Time PCR
• Components: lyophilized, ready-to-use master mix
• Intended use: GLU – General Lab Use
• Format: Str-format (0.2 ml medium-profile tubes)
• Recommended sample input: 50 µl extracted DNA/RNA per reaction (Str-format)
• Detection channels / dyes: FAM (IC) 495–520 nm; HEX (C. trachomatis) 535–554 nm; ROX (N. gonorrhoeae) 575–602 nm
• RealLine STI Multiplex attribute: Str
• Available pack example: 96 Tests
• SKU (variation): VBD0457-R
