HEPA filter housing CleanSeal Exhaust

airdustlaboratory

Product overview

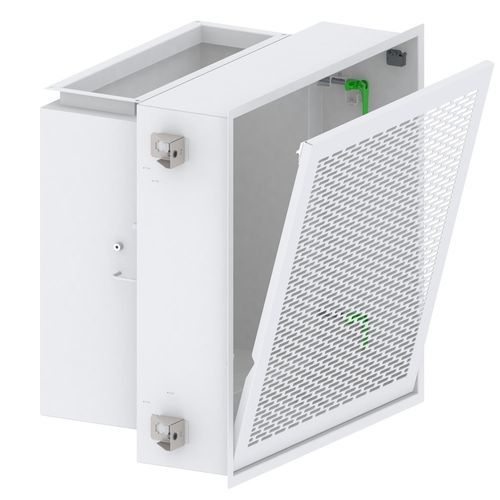

Fully welded wall-mounted terminal HEPA filter housing CleanSeal Exhaust designed for side rectangular duct connection and optional prefilter. Intended for turbulent exhaust airflow in cleanrooms and other controlled environments. Custom configurations and material options are available for industrial and laboratory installations.

Key features

• Toolless door operation for immediate access to the HEPA filter
• Toolless filter change for both HEPA and optional prefilter
• Interchangeable exhaust door configurations with or without prefilter
• Built-in filter height adapter available as option
• Fully welded steel construction for airtightness
• High corrosion resistance to common decontamination agents
• Available open plenum version
• Room-side accessible ports for downstream pressure measurement and ± secondary ports for remote sensors

Specifications

• Application: Turbulent exhaust airflow in cleanrooms and other controlled environments, wall-mounted installation.
• Installation options: Universal mounting system for wall compression mounting; optional quick clamping kit and rectangular-to-circular duct adapter.
• Construction & finish: Steel, fully welded; double-layer powder coat resistant to decontamination; standard color RAL 9010 or custom RAL on request.
• Material options: Stainless steel SS 304 (S4) or SS 316L (S6) available.
• Filter compatibility: MEGALAM PU — MD (66 / 78 mm), MX (90 mm), MG (110 mm).
• Instrumentation: Room-side accessible downstream pressure port and ± secondary ports for remote pressure drop reading.

Variants & dimensions

• CR-SW-3P3-P-MD-C-0200 — 412 × 412 × 468 mm (filter 305 × 305 × 66 mm)
• CR-SW-3P6-P-MD-C-0200 — 412 × 717 × 465 mm (filter 305 × 610 × 66 mm)
• CR-SW-6P6-P-MD-C-0250 — 717 × 717 × 515 mm (filter 610 × 610 × 66 mm)
• CR-SW-9P6-P-MD-C-0315 — 717 × 1022 × 580 mm (filter 610 × 915 × 66 mm)
• Plenum versions and no-plenum versions available for many SKUs; other filter depths (78 / 90 / 110 mm) and model codes shown on request.

Technical characteristics

• Type: Fully welded terminal HEPA filter housing for wall mounting.
• Mounting: Universal wall compression system (also suitable for ceiling mounting in specific configurations).
• Duct connection: Side rectangular (adapter available for circular ducts).
• Door & maintenance: Interchangeable door with/without prefilter; toolless operation for fast maintenance.
• Materials & finish: Steel with double-layer powder coating; optional SS304 / SS316L.
• Options: Built-in filter scaling, quick clamping kit, open plenum.
• Applications: Extraction/return in cleanrooms, laboratories, pharmaceutical and other controlled environments where turbulent exhaust is required.
