Overview

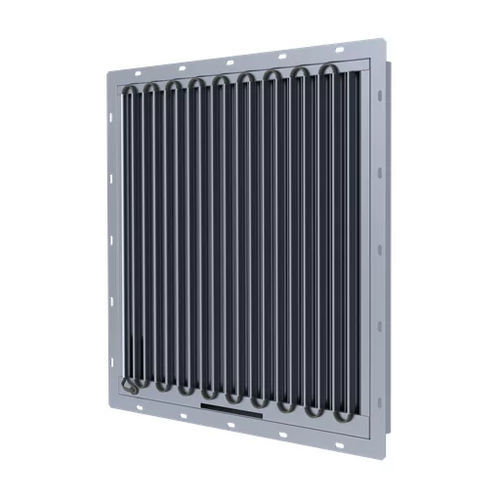

The CamVane 100 HC vane separator / weather louvre captures water droplets from the airstream and serves as an air intake rain protector. The "HC" version includes an integrated heating cable to reduce snow and ice accumulation on the vanes. The product is manufactured in aluminium with options for stainless steel outer casing; louvres are supplied to customer sizes and designed for low pressure drop and low noise.

Key features

• Class A according to EN 13030:2001
• Air velocities: 1.0–3.0 m/s (in duct); recommended front speed for dimensioning: 1.5–2.0 m/s
• Low noise level
• Very low pressure drop
• Weather resistant; suitable for marine and coastal environments
• Separation efficiency up to 100% for rain
• Heating cable: 220 V AC, self-regulating 20 W (reduces icing risk)
• Maximum installation dimensions up to 2500 x 2500 mm; supplied with drainage

Specifications
Application:
Air intake louvre for protection against rain, fog and water ingress. Suitable for filter installations and HVAC intakes in industrial, marine and coastal conditions.

Installation options:
Mounting flange or fastening ears manufactured to customer specifications.

Comment:
Product features and recommendations:
Air velocity (in duct): 1.0–3.0 m/s. For best separation performance, a front velocity of 1.5–2.0 m/s is recommended.
Heating cable: 220 V AC, self-regulating 20 W cable.
Maximum installation size: up to 2500 x 2500 mm. Supplied with drainage. Electrical connection must be installed by a qualified electrician.
When ordered in stainless steel: outer casing AISI 316L; profiles aluminum EN-AW-6060. Powder-coated finish available in requested RAL colour.

Technical characteristics / specifications

• Model: CamVane 100 HC
• Material: Aluminium (standard); optional outer casing in stainless steel AISI 316L
• Profiles: Aluminum EN-AW-6060
• Heating cable: 220 V AC, self-regulating 20 W (prevents snow/ice build-up)
• Air velocity (in duct): 1.0–3.0 m/s (recommended front speed 1.5–2.0 m/s)
• Class: A (EN 13030:2001)
• Performance: Separation efficiency up to 100% for rain
• Maximum installation dimensions: up to 2500 x 2500 mm
• Drainage: supplied
• Acoustic/flow: low pressure drop and low noise level
• Installation: mounting flange or fastening ears per customer specification; electrical installation by qualified electrician
• Finish: available powder-coated in requested RAL colour
