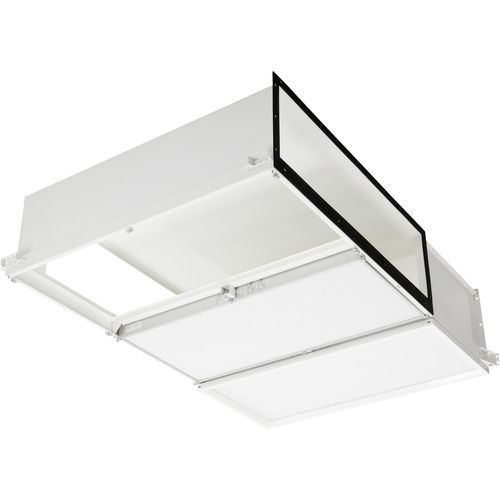

Operating room filtering ceiling CamHosp® 2

laminar flow

Overview
Modular filtration ceiling with unidirectional airflow specifically designed for operating theatres and compliant with requirements for risk zones 3 and 4 according to NFS 90-351.

Key features

• Factory-assembled, modular design
• Secure on-site bolted assembly
• Durable airtightness at module joints
• Quick and safe HEPA filter installation from the theatre side
• Plenum interior cleared for easy cleaning and decontamination
• Optional sealed LED luminaires and lamp pass-through solutions
• Filter protection options: Screentek or Protek

Specifications
Application:
Modular unidirectional airflow filtration ceiling for operating theatres.

Construction and installation:
Each module is factory-assembled and sealed. Design includes a carbon steel plenum and an airtight continuously welded platform 1.5 mm thick. Modules are bolted together on site; airtight joints are formed mechanically between modules. Exterior and interior finish: oven-baked RAL 9010 epoxy with primer. A test connector accessible from the operating theatre enables differential pressure measurement and aerosol sampling. HEPA filters are fitted from the theatre side using a compression limiter and captive pre-positioned tabs to ensure correct sealing. Casing airtightness at 450 Pa: Class B (EN 1886:1998), Class L1 (M) (PR EN 1886:2003), Class C (PR EN 12237:2003). Joints airtightness at 450 Pa: Maximum local penetration < 10-4 (0.01%) in accordance with ISO EN14644-3.

Technical specifications

• Application: Modular unidirectional filtration ceiling for operating theatres
• Construction: Factory-sealed modular units; carbon steel plenum and 1.5 mm continuously welded airtight platform
• Assembly: On-site bolting with mechanically formed airtight joints
• Finish: Oven-baked RAL 9010 epoxy with primer (inside and out); Screentek (monofilament polyester) or Protek (perforated steel) options
• Test connector: One accessible connector for pressure loss measurement and aerosol sampling
• HEPA filter fitting: Quick clamping from theatre side with compression limiter and captive pre-positioned tabs
• Casing airtightness (450 Pa): Class B EN 1886:1998; Class L1 (M) PR EN 1886:2003; Class C PR EN 12237:2003
• Joints airtightness (450 Pa): Maximum local penetration < 10-4 (0.01%) ISO EN14644-3
