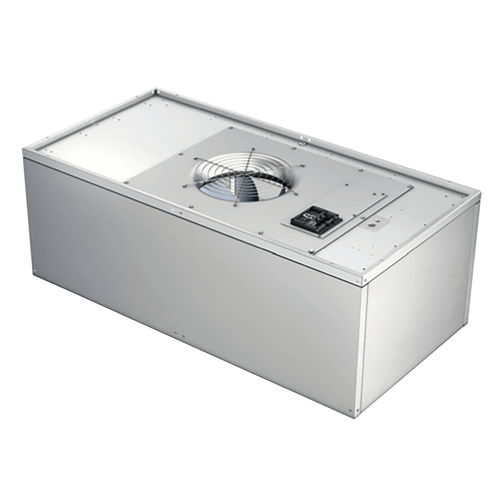

HEPA filtration unit CamFFU IS - EC

airfor clean roomsstainless steel

Overview
CamFFU IS-EC is a motorized fan filter unit (FFU) designed as a flexible LAF solution without the need for a ceiling grid. Units can be combined to form machine enclosures, clean work cabins or mini environments achieving cleanliness classes from ISO 14644‑1 class 8 to class 1 depending on configuration and operation.

Key features

• Flexible LAF solution without ceiling grid
• Low sound power level
• Low power consumption
• Maintenance‑free high‑efficiency EC fan with backwards‑curved blades
• Available control options: LON, Modbus or 0‑10V (also available as CamFFU_IS-EC_sce for simplified 0‑10V potentiometer control)

Product variants (dimensions & performance)
Item Type | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Max external dP (Pa) | Pressure drop initial (Pa) | Velocity (m/s)
IS-EC Low | 1200 | 600 | 435 | 770 | 390 | 80 | 0.3
IS-EC High | 1200 | 600 | 435 | 1160 | 120 | 120 | 0.5
IS-EC Stainless Low | 1200 | 600 | 435 | 770 | 390 | 80 | 0.3
IS-EC Stainless High | 1200 | 600 | 435 | 1160 | 120 | 120 | 0.5

Construction & components

• Housing: powder coated steel or stainless steel housing
• Fan: efficient EC motor with backwards‑curved blades (direct‑drive)
• Airflow control: BUS controlled system, handheld control or 0‑10V/LON/Modbus interfaces
• Filter options: Megalam H14, U15 or U16, MD or MX (filters and Camfil Sil‑Gel gasket ordered separately)

Technical specifications

• Application: Units can be screwed together to form individual cleanroom ceilings for machine enclosures, clean work cabins or mini environments (ISO 8 to ISO 1).
• Operating temperature: 0 – 40 °C
• Supply voltage: 200–240 V (motor data may indicate 200–277 V)
• Installation options: modular assemblies up to 4800 x 4800 mm; suspended or supported on pedestals
• Construction: powder coated steel or stainless steel
• Fan: EC motor, maintenance‑free, backwards‑curved impeller
• Control: BUS, LON, Modbus or 0‑10V; variant CamFFU_IS-EC_sce for potentiometer control
• Filters: Megalam H14, U15, U16; MD or MX types; Camfil Sil‑Gel gasket for filter sealing (ordered separately)
