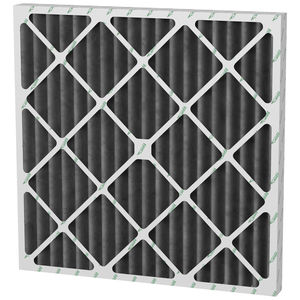

Activated carbon filter 30/30

airdustdental

Product overview
The 30/30 pleated panel filter is a first-stage HVAC prefilter designed to protect bag filters and V‑bank filters and to maintain air handling unit cleanliness. Its large media area and radial pleat geometry supported by a metal grid provide extended service life and reduce the frequency of panel filter replacements.

Key features

• Sustainable water‑resistant cardboard frame with diagonal front and back lattice for added support
• Prefilter classification: ePM10 50%
• Optimized energy efficiency and low initial pressure drop
• Long service life — up to 6 months depending on application
• Increased media area for high dust holding capacity
• Radial pleats supported by metal grid to maintain pleat spacing and shape throughout life

Available full-size modules (table)
Item Type | ISO 16890 | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa) | Energy (kWh/year) | Energy Class (Eurovent)
1050 595x595x46* | ePM10 50% | 595 | 595 | 46 | 3400 | 70 | >1100 | E
1050 493x493x46* | ePM10 50% | 493 | 493 | 46 | 2400 | 70 | | E
1050 493x622x46 | ePM10 50% | 493 | 622 | 46 | 3000 | 70 | | E
1050 493x595x46* | ePM10 50% | 493 | 595 | 46 | 2800 | 70 | | E
1050 393x622x46 | ePM10 50% | 393 | 622 | 46 | 2400 | 70 | | E
1050 393x493x46 | ePM10 50% | 393 | 493 | 46 | 1900 | 70 | | E
1050 289x595x46* | ePM10 50% | 289 | 595 | 46 | 1700 | 70 | | E
1050 595x595x95* | ePM10 50% | 595 | 595 | 95 | 3400 | 65 | 1098 | D
1050 493x493x95* | ePM10 50% | 493 | 493 | 95 | 2400 | 65 | | D
1050 493x622x95 | ePM10 50% | 493 | 622 | 95 | 3000 | 65 | | D
1050 493x595x95* | ePM10 50% | 493 | 595 | 95 | 2800 | 65 | | D
1050 393x622x95 | ePM10 50% | 393 | 622 | 95 | 2400 | 65 | | D
1050 393x493x95 | ePM10 50% | 393 | 493 | 95 | 1900 | 65 | | D
1050 289x595x95* | ePM10 50% | 289 | 595 | 95 | 1700 | 65 | | D

Technical specifications

• Application: Prefilter for air conditioning systems and AHUs
• Filter frame: Rigid water‑resistant cardboard
• Media: Synthetic fiber media supported by metal grid
• Max temperature (°C): 90º C
• Relative humidity: 100%
• Max final pressure drop, EN 13053: Initial pressure drop + 100 Pa or initial pressure drop ×3 (whichever is lower)
• Dimension standard: Filter front dimensions according to EN 15805
• Installation options: Front and side access housings and frames available
• Max airflow: 1.25 × nominal flow
