Activated carbon filter CityCarb I

airdentalfor healthcare facilities

Overview

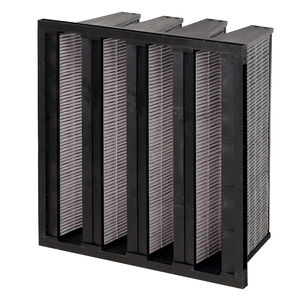

A compact V-bank air filter combining particulate and molecular media to remove solid particles and gaseous contaminants in a single filter stage. Suitable for retrofit in existing HVAC systems to treat moderate concentrations of indoor and outdoor pollutants. Classified ePM1 70% according to ISO 16890 and tested to ISO 10121-3 for molecular performance.

Key features

• Combined particulate and molecular filtration in one element.
• Removes solid particles and a range of gases and vapours (odours, corrosive gases).
• Suitable for upgrading existing installations.
• Tested and classified to relevant ISO standards for particle and molecular filters.

Available variants (table)
Item Type | ISO 16890 | Filter Class EN779 | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa) | ISO 10121 Ozone | ISO 10121 NO₂ | ISO 10121 SO₂ | ISO 10121 Toluene
CIZP-7I 0592/0592/0292 | ePM1 70% | F7 | 592 | 592 | 292 | 3400 | 130 | HD 80 | LD 70 | MD 50 | MD 80
CIZP-7I 0592/0490/0292 | ePM1 70% | F7 | 592 | 490 | 292 | 2800 | 130 | HD 80 | LD 70 | MD 50 | MD 80
CIZP-7I 0592/0287/0292 | ePM1 70% | F7 | 592 | 287 | 292 | 1500 | 130 | HD 80 | LD 70 | MD 50 | MD 80

Certifications / badges

• ISO 16890: particle performance classification (ePM1 70%).
• ISO 10121 (ISO 10121-3): molecular filter testing and classification.
• Molecular badge: tested for removal of gases and vapours affecting odour, health, industrial processes or corrosion.

Technical specifications

• Application: removal of particles and corrosive gases in museums, galleries, libraries, offices, hospitals and airports.
• Frame: moulded plastic.
• Media: synthetic particulate media combined with activated carbon.
• Max operating temperature: 50 °C.
• Relative humidity: 30%–70%.
• Max final pressure drop (EN 13053): initial pressure drop + 100 Pa or initial ×3 (lower value applied).
• Standard dimensions: front dimensions according to EN 15805.
• Installation: front and side access housings and frames available.
• Max airflow: 1.25 × nominal flow.
