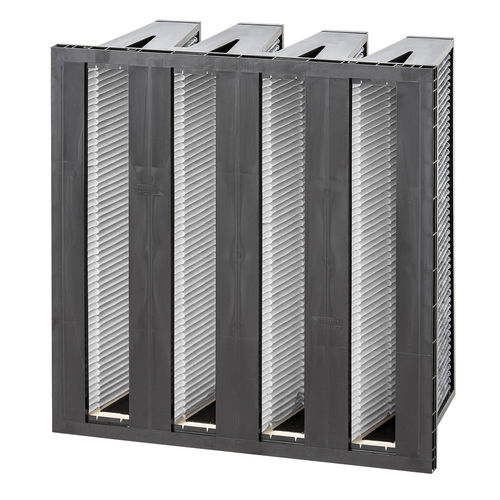

Activated carbon filter CityCarb E

particulategasair

Overview
A compact V-bank air filter combining particulate and molecular media (activated carbon) to remove solid particles and gaseous contaminants in a single filter stage. Designed for general ventilation and suitable for upgrading existing HVAC installations to treat moderate concentrations of internal and external pollutants. Certified ePM10 80% according to ISO 16890.

Key features

• 2-in-1 filtration: particulate and molecular (activated carbon)
• Removal of solid particles and gaseous contaminants in one stage
• Suitable for moderate concentrations of most external and internal pollutants
• Compatible with existing housings and upgrade installations
• Classified according to ISO 10121-3 for molecular performance

Standards & badges
Tested and performance classified to ISO 16890 (ePM10 80%). Molecular filtration classified according to ISO 10121. Intended for particle and molecular removal in general ventilation systems.

Variants (table)
Item | ISO 16890 | EN779 class | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Initial pressure drop (Pa) | ISO 10121 Ozone | ISO 10121 NO₂ | ISO 10121 SO₂ | ISO 10121 Toluene
CIZP-6E 0592/0592/0292 | ePM10 80% | M6 | 592 | 592 | 292 | 3400 | 80 | MD 55 | LD 60 | vLD 30 | MD 65
CIZP-6E 0592/0490/0292 | ePM10 80% | M6 | 592 | 490 | 292 | 2800 | 80 | MD 55 | LD 60 | vLD 30 | MD 65
CIZP-6E 0592/0287/0292 | ePM10 80% | M6 | 592 | 287 | 292 | 1500 | 80 | MD 55 | LD 60 | vLD 30 | MD 65

Technical specifications

• Application: Particle and odour removal in offices, hospitals, airports and other general ventilation environments
• Filter frame: Plastic moulded
• Media: Synthetic particulate media and activated carbon molecular layer
• Max temperature (°C): 50
• Relative humidity: 30% - 70%
• Max final pressure drop (EN 13053): Initial pressure drop + 100 Pa or initial pressure drop ×3 (whichever is lower)
• Dimension standard: Filter front dimensions according to EN 15805
• Installation options: Front and side access housings and frames available
• Max airflow: 1.25 × nominal flow
