is a solution when other treatment method failed.

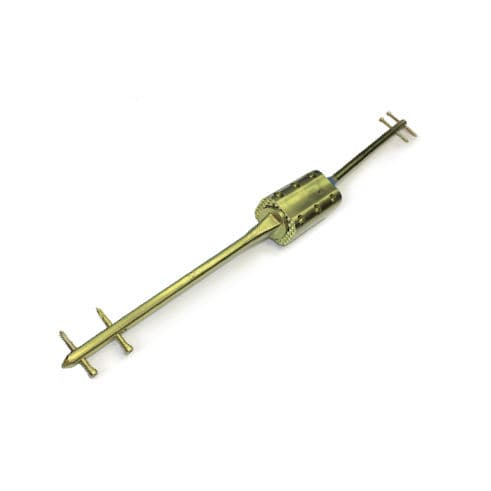

It is made of titanium and its alloys and is used to join femur and tibia at the side of knee resection or partially removed join surface.
failed knee arthroplasty;
post-traumatic state excluding knee prosthesis implantation;
tumors in knee area;
loss of or damage to the extensor mechanism;
arthroplasty of the knee joint.
Design aligned with the anatomy• 4 longitudinal grooves, each every 90°, reducing intramedullary pressure and stabilizing the implant axially in the canal• anatomical profile of the femoral and tibial elements• longitudinal transfer of loads by a distance, nails not affected• colour-markingNail profile• solid and repeatable hinged connection of the tibial and femoral elements, additionally secured with dedicated screws• the tibial implant is equipped with a flange for support of the resected tibia • nail range diameter of 10 ÷ 12 mm• uniform rectangular cross-section of the nails in the connection part for the entire implants range• femoral implant: left and right version • solid (femoral and tibial elements)
Distance profile• includes upper and lower parts (one or two elements) connected with dedicated screws• serrated surfaces provide support for the tibia and femur• replaces the removed knee joint and provides additional limb stabilization• range of distance lengths ensures restoration of the resected limb length
