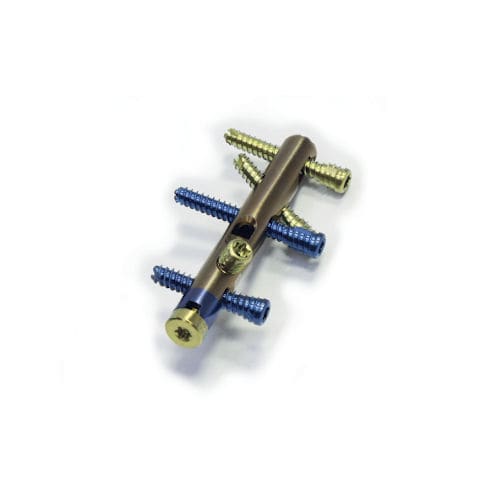

Intramedullary osteosynthesis with calcaneal nails CHARFIX2 allow for stable reduction of fracture fragments or stable bone immobilization during arthrodesis procedure.
Nail is offered in right and left versions, respectively for the right and left limb.
simple or comminuted fractures of the calcaneus;
intraarticular fractures of the calcaneus;
delayed or non-union after other treatment methods;
Design aligned with the anatomy• anatomical bevel (implant does not irritate soft tissues)• serration of the nail allowing for stable positioning of the implant in relation to the talus• colour-markingNail profile• a range of nails and end caps lengths to fit the patient’s anatomy• two nail diameters: 10 mm and 12 mm• left and right version• cannulatedNail indications• simple and comminuted fractures of the calcaneus• interarticular fractures of the calcaneus• delayed or non union after other treatment methods• subtalar arthrodesisLocking elements• the thread on the entire length of the working part and head of the screw enables its complete insertion into the bone, reducing irritation of surrounding soft tissues• self-tapping flutes• locking or non-locking• colour-marking• diameter: 5 mm and 5.5 mm, cannulated.Multiple screw holes• depending on the length, the nail is provided with 4 up to 6 holes ensuring multi-planar static or dynamic locking in the bone• 1 oval-shaped hole to be filled up with bone graft
