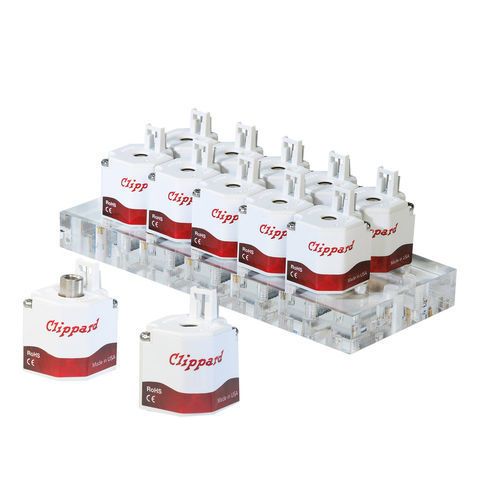

Medical valve ES

solenoiddirect-operated

The ES series features large cross sectional o-rings, minimal leak points, and proven poppet designs. All mounting hardware is outside of the flow path for the ES, and no internal parts are threaded during assembly to reduce the possibility of contamination. The ES has the best performance-to-price ratio for low leak valves. Over 1 billion cycles (under ideal conditions) 0.01 atm sccm leak rate No threads in flow path Fast response - 5 to 10 ms (nominal) Close mounting - 7/8” on center, overall height less than 1” Ideal for ultra-low leak applications 2D File - File Coil Resistance - 144 Ω Current - 0.083 Amp Cycle - Over 1 Billion Data Sheet - Data Sheet Filtration - 40 micron (recommended) Leak Rate - 0.01 sccm Manifolds - Manifolds, Cover Plate Material, Body - ENP Carbon Steel, Nickel Iron Alloy, 300 Series Stainless Steel, Glass-Filled Nylon Housing Material, Seals - Nitrile Material, Spring - Nickel Alloy Max. psig - 105 psig (7 bar) Medium - Clean, Dry Air and Compatible Gases Mount - Manifold Operating Temperature Range - 32 to 150°F (0 to 66°C) Port, Inlet - No Thread Port, Outlet - No Thread Product Line Brochure - Spider Valves Response Time - 5 to 10 ms (nominal) Thread - #4-40 or M3 (torque to 1-3 in-lb.) Voltage - 12 VDC Voltage Operating Range - 90 to 120% of Rated Voltage Wattage - 1 Watt at Rated Voltage Weight (lbs.) - 0.0850
