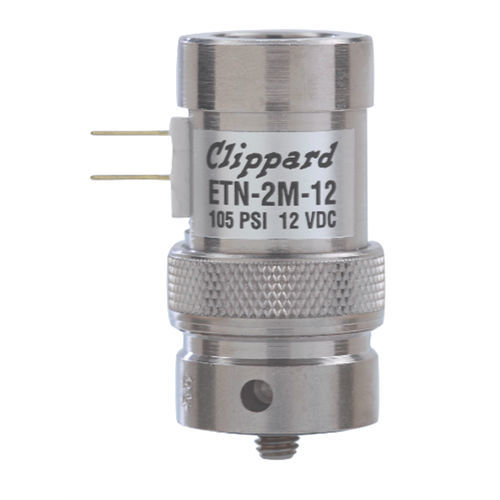

Medical valve ETN-2M-12

solenoid

2-Way Electronic Valve, Normally-Open, Manifold Mount, 12 VDC 2D Drawings - 2D Files Accessories - Installation Socket Torque Tool 30215 Coil Resistance - 218 Connection - Spade Terminal, 0.110" Connector - ET-C48 or ET-C120 or 3831-1-PKG Current - 0.055A Data Sheet - Data Sheet Filtration - 40 micron (recommended) Function - 2-Way Normally-Open Leak Rate - 0.1 sccm Length - 1.67 Life Cycle - >1,000,000,000 (ideal applications) Manifolds - Single & Multi-Station, Specialized Material, Body - Nickel-Plated Brass, ENP Carbon Steel, Nickel Iron Alloy, 300 Stainless Steel Material, Seals - Nitrile Material, Spring - Nickel Alloy Material, Wetted - ENP Brass, Nickel Alloy, Stainless Steel & ENP Steel Max PSI - 105 Max. Flow - 17 l/min @ 100 psig Medium - Clean, Dry Air & Compatible Gases Mount - Manifold Operating Pressure - 105 psig (17 l/min @ 100 psig) Operating Temperature Range - 32 to 180°F (0 to 82°C) Operating Voltage Range - 90 to 150% Poppet Travel - 0.007" Product Line Brochure - Spider Valves Response Time - 5 to 10 milliseconds (nominal) Unit - Imperial Voltage - 12 VDC Wattage - 0.67 Watts (nominal) Weight (lbs.) - 0.1700
